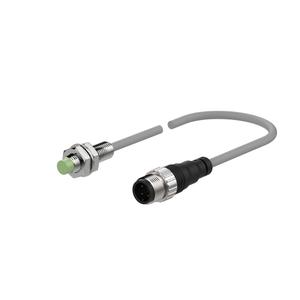

Autonics PRWT08-2DO-IV Proximity Sensor
The Autonics PRWT08-2DO-IV Proximity Sensor offers 2mm sensing distance, Normally Open output, Non-flush, M08, Standard type, 1kHz Response frequency. Manufactured by Autonics under the Autonics Proximity Sensors category, this model belongs to the Autonics PR Series.
| Brand | Autonics |
| Product Type | Proximity Sensor |
| Model Number | PRWT08-2DO-IV |
Autonics PRWT08-2DO-IV Proximity Sensor β Technical Specifications
| Specification | Value |
|---|---|
| Sensing side diameter | M08 |
| Sensing distance | 2mm |
| Hysteresis(distance) | Max. 10% of sensing distance |
| Standard sensing target | 8Γ8Γ1mm(iron) |
| Current specification | Leakage current: Max. 0.6mA |
| Control output | Normally Open |
| Wire type and power | DC 2-wire type 12-24VDC @(=) |
| Installation | Non-flush |
| Cable Standard/material | Oil resistant cable(IEC standard) |
| Body length | Standard type |
| Residual voltage | Max. 3.5V |
| Environment_Ambient temperature | -25 to 70β, storage: -30 to 80β |
| Environment_Ambient humidity | 35 to 95% RH, storage: 35 to 95% RH |
| Protection structure | IP67(IEC standard) |
| Material | Case/Nut: Nikel plated Brass, (connector case of DIA. of sensing side Γ 8 mm: SUS303),washer: Nikel plated Iron, sensing side: polybutylene terephthalate,standard cable (black): polyvinyl chloride (PVC),oil resistant cable (gray): oil resistant polyvinyl chloride (PVC) |
| Response frequency | 1kHz |
| Weight | Approx. 44g(approx. 32g) |
Talk to Our Engineer for Cylindrical Inductive Sensors PRWT08-2DO-IV with exclusive offers. Core System Specifications of PRWT08-2DO-IV are the key specifications include a sensing distance of 2mm designed for a standard target of 8Γ8Γ1mm(iron). This sensor features a Current specification of Leakage current: Max. 0.6mA and a control output with Normally Open configurations. It operates on a Wire type and power DC 2-wire type 12-24VDC @(=). Its sensing side size guarantees precise detection, even in challenging environments. The sensor operates efficiently within ambient temperatures of -25 to 70β, storage: -30 to 80β and can be stored at temperatures ranging. A response frequency of 1kHz ensures quick and accurate performance. Don't Miss Out on a Quote for your requirement of Cylindrical Inductive Sensors. Count on us for more economical pricing and more reliable support than other Dealers & Distributors.
