Many procurement teams check PRWL30-10AO against Autonics Photoelectric Sensor, Contrinex Proximity Sensor and Autonics Prfdawt12 3Do Iv before signing purchase orders, verifying quality, compliance, and after-sales support availability.

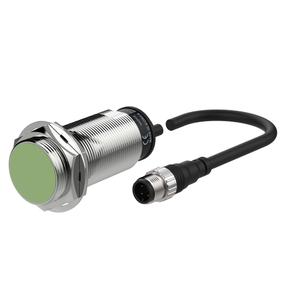

Autonics PRWL30-10AO Proximity Sensor
The Autonics PRWL30-10AO Proximity Sensor offers 10mm sensing distance, Normally Open output, Flush, M30, Long body, 20Hz Response frequency. Manufactured by Autonics under the Autonics Proximity Sensors category, this model belongs to the Autonics PR Series.
| Brand | Autonics |
| Product Type | Proximity Sensor |
| Model Number | PRWL30-10AO |
Autonics PRWL30-10AO Proximity Sensor β Technical Specifications
| Specification | Value |
|---|---|
| Sensing side diameter | M30 |
| Sensing distance | 10mm |
| Hysteresis(distance) | Max. 10% of sensing distance |
| Standard sensing target | 30Γ30Γ1mm(iron) |
| Current specification | Leakage current: Max. 2.5mA |
| Control output | Normally Open |
| Wire type and power | AC 2-wire type 100-240VAC~ |
| Installation | Flush |
| Cable Standard/material | Standard connector |
| Body length | Long body |
| Insulation type | Double insulation or reinforced insulation(mark: @(INS), dielectric strength between the measuring input part and the power part: 1kV) |
| Residual voltage | Max. 10V |
| Environment_Ambient temperature | -25 to 70β, storage: -30 to 80β |
| Environment_Ambient humidity | 35 to 95% RH, storage: 35 to 95% RH |
| Protection structure | IP67(IEC standard) |
| Material | Brass(nickel plated) |
| Response frequency | 20Hz |
| Weight | Approx. 195g(approx. 158g) |
Get A Quote for Cylindrical Inductive Proximity Sensors PRWL30-10AO at the best price. Here are the brief Technical Specifications of PRWL30-10AO are the key specifications include a sensing distance of 10mm designed for a standard target of 30Γ30Γ1mm(iron). This sensor features a Current specification of Leakage current: Max. 2.5mA and a control output with Normally Open configurations. It operates on a Wire type and power AC 2-wire type 100-240VAC~. Its sensing side size guarantees precise detection, even in challenging environments. The sensor operates efficiently within ambient temperatures of -25 to 70β, storage: -30 to 80β and can be stored at temperatures ranging. A response frequency of 20Hz ensures quick and accurate performance. It's Time to get a Quote for your requirement of Cylindrical Inductive Proximity Sensors. We guarantee unmatched pricing and unparalleled support compared to other Distributors.
