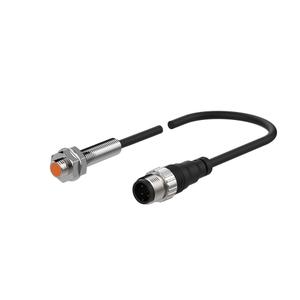

Autonics PRWL08-1.5DP2 Proximity Sensor
The Autonics PRWL08-1.5DP2 Proximity Sensor offers 1.5mm sensing distance, PNP Normally Closed output, Flush, M08, Long body, 1.5kHz Response frequency. Manufactured by Autonics under the Autonics Proximity Sensors category, this model belongs to the Autonics PR Series.
| Brand | Autonics |
| Product Type | Proximity Sensor |
| Model Number | PRWL08-1.5DP2 |
Autonics PRWL08-1.5DP2 Proximity Sensor β Technical Specifications
| Specification | Value |
|---|---|
| Sensing side diameter | M08 |
| Sensing distance | 1.5mm |
| Hysteresis(distance) | Max. 15% of sensing distance |
| Standard sensing target | 8Γ8Γ1mm(iron) |
| Current specification | Current consumption: Max. 10mA |
| Control output | PNP Normally Closed |
| Wire type and power | DC 3-wire type 12-24VDC @(=) |
| Installation | Flush |
| Cable Standard/material | Standard connector |
| Body length | Long body |
| Residual voltage | Max. 2V |
| Environment_Ambient temperature | -25 to 70β, storage: -30 to 80β |
| Environment_Ambient humidity | 35 to 95% RH, storage: 35 to 95% RH |
| Protection structure | IP67(IEC standard) |
| Material | Case/Nut: Nikel plated Brass, (connector case of DIA. of sensing side Γ 8 mm: SUS303),washer: Nikel plated Iron, sensing side: polybutylene terephthalate,standard cable (black): polyvinyl chloride (PVC),oil resistant cable (gray): oil resistant polyvinyl chloride (PVC) |
| Response frequency | 1.5kHz |
| Weight | Approx. 46g(approx. 34g) |
Call us for Cylindrical Inductive Sensors PRWL08-1.5DP2 at the best rates. Technical Attributes of PRWL08-1.5DP2 are the key specifications include a sensing distance of 1.5mm designed for a standard target of 8Γ8Γ1mm(iron). This sensor features a Current specification of Current consumption: Max. 10mA and a control output with PNP Normally Closed configurations. It operates on a Wire type and power DC 3-wire type 12-24VDC @(=). Its sensing side size guarantees precise detection, even in challenging environments. The sensor operates efficiently within ambient temperatures of -25 to 70β, storage: -30 to 80β and can be stored at temperatures ranging. A response frequency of 1.5kHz ensures quick and accurate performance. Unlock Exclusive Pricing with a Quote for your requirement of Cylindrical Inductive Sensors. Trust in our ability to provide more advantageous pricing and dedicated support beyond other other Dealers.
