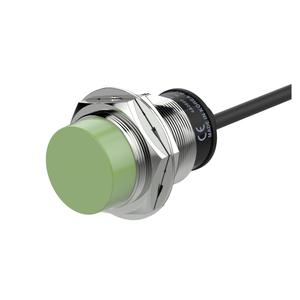

Autonics PRT30-15DO Proximity Sensor
The Autonics PRT30-15DO Proximity Sensor offers a 15mm sensing distance, Normally Open output, and DC 2-wire 12β24VDC operation ensuring stable performance in industrial automation environments. Manufactured by Autonics under the Autonics Proximity Sensors range, this model belongs to the Autonics PR Series. It features a M30 sensing side diameter, Max. 10% hysteresis, and 45Γ45Γ1mm iron standard target. Designed with IP67 protection (IEC standard) and a 200Hz response frequency, it delivers durable and accurate object detection in demanding conditions.
| Brand | Autonics |
| Product Type | Proximity Sensor |
| Model Number | PRT30-15DO |
Autonics PRT30-15DO Proximity Sensor β Technical Specifications
| Specification | Value |
|---|---|
| Sensing side diameter | M30 |
| Sensing distance | 15mm |
| Hysteresis(distance) | Max. 10% of sensing distance |
| Standard sensing target | 45Γ45Γ1mm(iron) |
| Current specification | Leakage current: Max. 0.6mA |
| Control output | Normally Open |
| Wire type and power | DC 2-wire type 12-24VDC @(=) |
| Installation | Non-flush |
| Cable Standard/material | Standard cable |
| Body length | Standard type |
| Residual voltage | Max. 3.5V |
| Environment_Ambient temperature | -25 to 70β, storage: -30 to 80β |
| Environment_Ambient humidity | 35 to 95% RH, storage: 35 to 95% RH |
| Protection structure | IP67(IEC standard) |
| Material | Case/Nut: Nikel plated Brass, (connector case of DIA. of sensing side Γ 8 mm: SUS303),washer: Nikel plated Iron, sensing side: polybutylene terephthalate,standard cable (black): polyvinyl chloride (PVC),oil resistant cable (gray): oil resistant polyvinyl chloride (PVC) |
| Response frequency | 200Hz |
| Weight | Approx. 207g(approx. 170g) |
Autonics designed the PRT30-15DO Cylindrical Inductive Proximity Sensor with a 15mm sensing distance and robust M30 non-flush housing for accurate detection of metallic objects. Powered by a DC 2-wire 12β24V supply, it offers a Normally Open output with low leakage current of just 0.6mA, ensuring energy-efficient operation. A residual voltage of 3.5V and response frequency of 200Hz make it suitable for conveyor tracking and mid-speed automation tasks. Constructed with nickel-plated brass and a durable polybutylene terephthalate sensing face, the PRT30-15DO achieves IP67 protection against dust, oil, and water. It operates reliably from β25Β°C to 70Β°C, making it ideal for harsh environments and continuous-duty industrial setups.
The Autonics PRT30-15DO is trusted across conveyors, assembly lines, packaging systems, and industrial machinery where accurate non-contact detection prevents errors and downtime. Engineers value its stability and rugged build, while maintenance teams benefit from simple wiring and long service life. Its non-flush mounting supports extended detection ranges, reducing false signals in open installations. For engineering students and training centers, the PRT30-15DO provides a practical example of inductive sensing technology, making it useful for both academic and real-world learning environments.
In automation, the PRT30-15DO is widely chosen for its precision, durability, and ease of integration. Industrial buyers searching for PRT30, 15DO, or Autonics PRT30-15DO recognize its proven ability to deliver reliable sensing in critical applications. Many wholesalers, dealers, and distributors recommend the PRT30-15DO for OEMs seeking dependable Cylindrical Inductive Proximity Sensors. With consistent performance and strong brand reliability, this model continues to be a trusted choice for factories, integrators, and engineering professionals.
