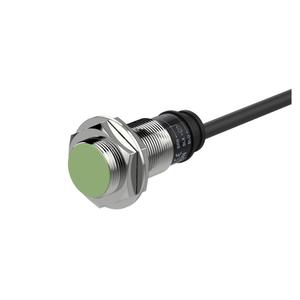

Autonics PRT18-5DO Proximity Sensor
The Autonics PRT18-5DO Proximity Sensor provides 5mm sensing distance, M18 sensing side diameter, and a dependable Normally Open output with DC 2-wire 12β24VDC operation for stable and accurate industrial detection. Manufactured by Autonics under the Autonics Proximity Sensors range, this model belongs to the PR Series. It ensures maximum 10% hysteresis, supports a 18Γ18Γ1mm iron target, provides IP67 protection, and operates at a 500Hz response frequency for efficient, high-speed sensing in automation systems.
| Brand | Autonics |
| Product Type | Proximity Sensor |
| Model Number | PRT18-5DO |
Autonics PRT18-5DO Proximity Sensor β Technical Specifications
| Specification | Value |
|---|---|
| Sensing side diameter | M18 |
| Sensing distance | 5mm |
| Hysteresis(distance) | Max. 10% of sensing distance |
| Standard sensing target | 18Γ18Γ1mm(iron) |
| Current specification | Leakage current: Max. 0.6mA |
| Control output | Normally Open |
| Wire type and power | DC 2-wire type 12-24VDC @(=) |
| Installation | Flush |
| Cable Standard/material | Standard cable |
| Body length | Standard type |
| Residual voltage | Max. 3.5V |
| Environment_Ambient temperature | -25 to 70β, storage: -30 to 80β |
| Environment_Ambient humidity | 35 to 95% RH, storage: 35 to 95% RH |
| Protection structure | IP67(IEC standard) |
| Material | Case/Nut: Nikel plated Brass, (connector case of DIA. of sensing side Γ 8 mm: SUS303),washer: Nikel plated Iron, sensing side: polybutylene terephthalate,standard cable (black): polyvinyl chloride (PVC),oil resistant cable (gray): oil resistant polyvinyl chloride (PVC) |
| Response frequency | 500Hz |
| Weight | Approx. 122g(approx. 110g) |
The Autonics PRT18-5DO sensor features a 5mm sensing distance, ideal for detecting standard iron targets sized 18Γ18Γ1mm. This model operates with a Normally Open control output on a DC 2-wire system (12β24VDC), with a leakage current of max. 0.6mA. A robust response frequency of 500Hz ensures fast and accurate detection in high-speed automation lines. With flush-type mounting, the sensor allows for precise alignment in compact assemblies. The residual voltage remains below 3.5V, maintaining signal integrity across sensitive PLC or relay circuits. These specifications make it dependable in precision-driven environments like bottling plants, part positioning units, and indexing conveyors.
Constructed with a nickel-plated brass body and PBT sensing face, the PRT18-5DO is built for durability under mechanical stress, moisture, and oil exposure. The sensor holds an IP67 protection rating, making it resilient to industrial washdowns, airborne particles, and vibration-prone environments. The ambient operating temperature range of -25Β°C to +70Β°C further enhances its usability in both hot and cold setups. With a compact weight of approx. 122g, it supports easy integration into control panels, bracket mounts, and equipment interiors. Its standard cable offers long-term reliability, while oil-resistant PVC options support usage near hydraulic or coolant zones.
The Autonics PRT18-5DO Cylindrical Inductive Proximity Sensor is widely used across metal detection systems, automated material handling lines, and robotic end-effector feedback. For maintenance engineers, it reduces troubleshooting time with its 2-wire configuration and stable signal output. Engineering students and trainers often use this model in real-time sensing labs to teach object detection accuracy and PLC interfacing. Whether applied in automotive production or packaging machinery, this model provides lasting performance and integration ease. For full specs and datasheet, visit the Autonics Proximity Sensor page or view all Autonics automation solutions here.
