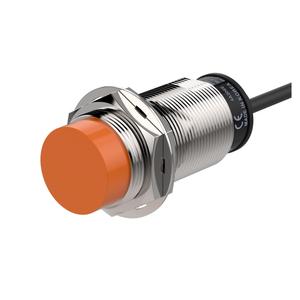

Autonics PRL30-15DP Proximity Sensor
The Autonics PRL30-15DP Proximity Sensor provides 15mm sensing distance, M30 sensing side diameter, and a durable PNP Normally Open output with DC 3-wire 12β24VDC power for precise and stable industrial automation performance. Manufactured by Autonics under the Autonics Proximity Sensors category, this model is part of the PR Series. It ensures maximum 10% hysteresis, supports a 45Γ45Γ1mm iron target, features IP67 protection, and operates at a 200Hz response frequency for reliable and efficient performance in industrial sensing environments.
| Brand | Autonics |
| Product Type | Proximity Sensor |
| Model Number | PRL30-15DP |
Autonics PRL30-15DP Proximity Sensor β Technical Specifications
| Specification | Value |
|---|---|
| Sensing side diameter | M30 |
| Sensing distance | 15mm |
| Hysteresis(distance) | Max. 10% of sensing distance |
| Standard sensing target | 45Γ45Γ1mm(iron) |
| Current specification | Current consumption: Max. 10mA |
| Control output | PNP Normally Open |
| Wire type and power | DC 3-wire type 12-24VDC @(=) |
| Installation | Non-flush |
| Cable Standard/material | Standard cable |
| Body length | Long body |
| Residual voltage | Max. 1.5V |
| Environment_Ambient temperature | -25 to 70β, storage: -30 to 80β |
| Environment_Ambient humidity | 35 to 95% RH, storage: 35 to 95% RH |
| Protection structure | IP67(IEC standard) |
| Material | Case/Nut: Nikel plated Brass, (connector case of DIA. of sensing side Γ 8 mm: SUS303),washer: Nikel plated Iron, sensing side: polybutylene terephthalate,standard cable (black): polyvinyl chloride (PVC),oil resistant cable (gray): oil resistant polyvinyl chloride (PVC) |
| Response frequency | 200Hz |
| Weight | Approx. 247g(approx. 210g) |
The Autonics PRL30-15DP is a high-performance Cylindrical Inductive Proximity Sensor engineered for precision metal detection in factory automation. With a large M30 sensing face and non-flush mounting design, it offers a dependable 15mm sensing distance calibrated for standard iron targets (45Γ45Γ1mm). Powered by a DC 3-wire 12β24V supply, it provides a PNP Normally Open output, making it ideal for seamless integration into PLCs and industrial control systems.
Thanks to a fast 200Hz response frequency, the PRL30-15DP ensures accurate, real-time signal detection in high-speed applications. It maintains a low current consumption of 10mA and a residual voltage of 1.5V, which helps prevent signal loss over long cable runs. The sensor is housed in nickel-plated brass and sealed to IP67 standards, offering excellent resistance to dust, water, oil, and chemicals. It remains stable across harsh environments, operating reliably between -25Β°C to 70Β°C. The long-body format allows flexible deep mounting in enclosures or machines.
Engineered for demanding industrial use, the PRL30-15DP is a trusted choice among automation engineers, panel builders, and OEMs. Learn more on our Autonics Proximity Sensors page or view the complete range at Autonics Sensors & Controllers.
In automation training centers and labs, this sensor is commonly used to teach proximity sensing, power wiring, and signal integration using real industrial-grade components. The model used in these real-time applications is PRL30-15DP.
