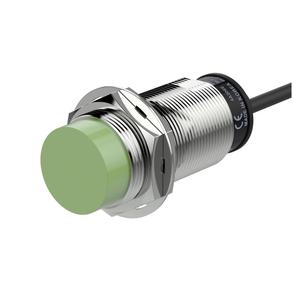

Autonics PRL30-10DP Proximity Sensor
The Autonics PRL30-10DP Proximity Sensor features 10mm sensing distance, M30 sensing side diameter, and a dependable PNP Normally Open output with DC 3-wire 12β24VDC operation for accurate industrial automation sensing. Manufactured by Autonics under the Autonics Proximity Sensors category, this model belongs to the PR Series. It ensures maximum 10% hysteresis, supports a 30Γ30Γ1mm iron target, delivers IP67 protection, and provides a 400Hz response frequency for consistent, high-speed performance in industrial environments.
| Brand | Autonics |
| Product Type | Proximity Sensor |
| Model Number | PRL30-10DP |
Autonics PRL30-10DP Proximity Sensor β Technical Specifications
| Specification | Value |
|---|---|
| Sensing side diameter | M30 |
| Sensing distance | 10mm |
| Hysteresis(distance) | Max. 10% of sensing distance |
| Standard sensing target | 30Γ30Γ1mm(iron) |
| Current specification | Current consumption: Max. 10mA |
| Control output | PNP Normally Open |
| Wire type and power | DC 3-wire type 12-24VDC @(=) |
| Installation | Flush |
| Cable Standard/material | Standard cable |
| Body length | Long body |
| Residual voltage | Max. 1.5V |
| Environment_Ambient temperature | -25 to 70β, storage: -30 to 80β |
| Environment_Ambient humidity | 35 to 95% RH, storage: 35 to 95% RH |
| Protection structure | IP67(IEC standard) |
| Material | Case/Nut: Nikel plated Brass, (connector case of DIA. of sensing side Γ 8 mm: SUS303),washer: Nikel plated Iron, sensing side: polybutylene terephthalate,standard cable (black): polyvinyl chloride (PVC),oil resistant cable (gray): oil resistant polyvinyl chloride (PVC) |
| Response frequency | 400Hz |
| Weight | Approx. 247g(approx. 210g) |
The Autonics PRL30-10DP delivers a reliable 10mm sensing distance using a M30 flush-mounted body that ensures stability and minimal interference from surrounding metallic structures. Designed for standard 30Γ30Γ1mm iron targets, the sensor integrates smoothly into PLC systems with its PNP Normally Open control logic and DC 3-wire 12β24VDC operation. With low current consumption of just 10mA and a residual voltage of 1.5V, the PRL30-10DP performs efficiently even in energy-sensitive environments. Its 400Hz response frequency enables quick switching for medium-to-fast-paced automation lines. The sensor body is built with nickel-plated brass housing and a reinforced polybutylene terephthalate sensing face, ensuring long-term durability in demanding industrial settings.
Engineered for rugged use, the PRL30-10DP meets IP67 ingress protection standards, making it resistant to dust, oil, and water exposure. Its operational temperature range of -25Β°C to 70Β°C allows deployment in both indoor and semi-harsh environments, including metal fabrication shops, conveyor stations, and packing systems. With a long-body design, it fits well into deep enclosures or recessed brackets without compromising on alignment. The use of standard and oil-resistant cables further enhances its adaptability across production lines. As part of Autonics' trusted cylindrical series, this sensor is backed by industry-proven reliability and consistent manufacturing quality. For brand-level confidence, refer to the full Autonics range at Autonics Sensors & Controllers or check the product category at Autonics Proximity Sensors.
The PRL30-10DP is widely used in material detection, automated counting systems, metal positioning, and robotic arm movement feedback. Maintenance teams prefer this model for its easy wiring and resistance to industrial interference. In machine tools, it assists in part verification, while on conveyors, it provides consistent trigger signals for actuator control. For Indian engineers managing production uptime, the PRL30-10DP delivers stable switching under load, even with daily vibrations and environmental changes. For engineering students and lab trainers, this model provides a practical example of flush-mount proximity sensing with reliable PNP output logic. Built with industrial discipline in mind, it supports long-term use in both retrofit and OEM applications.
