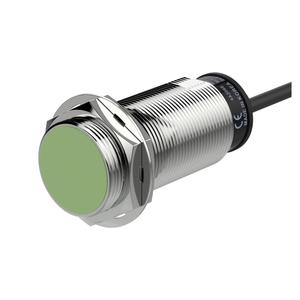

Autonics PRL30-10DN2 Proximity Sensor
The Autonics PRL30-10DN2 Proximity Sensor offers 10mm sensing distance, NPN Normally Closed output, Flush, M30, Long body, 400Hz Response frequency. Manufactured by Autonics under the Autonics Proximity Sensors category, this model belongs to the Autonics PR Series.
| Brand | Autonics |
| Product Type | Proximity Sensor |
| Model Number | PRL30-10DN2 |
Autonics PRL30-10DN2 Proximity Sensor β Technical Specifications
| Specification | Value |
|---|---|
| Sensing side diameter | M30 |
| Sensing distance | 10mm |
| Hysteresis(distance) | Max. 10% of sensing distance |
| Standard sensing target | 30Γ30Γ1mm(iron) |
| Current specification | Current consumption: Max. 10mA |
| Control output | NPN Normally Closed |
| Wire type and power | DC 3-wire type 12-24VDC @(=) |
| Installation | Flush |
| Cable Standard/material | Standard cable |
| Body length | Long body |
| Residual voltage | Max. 1.5V |
| Environment_Ambient temperature | -25 to 70β, storage: -30 to 80β |
| Environment_Ambient humidity | 35 to 95% RH, storage: 35 to 95% RH |
| Protection structure | IP67(IEC standard) |
| Material | Case/Nut: Nikel plated Brass, (connector case of DIA. of sensing side Γ 8 mm: SUS303),washer: Nikel plated Iron, sensing side: polybutylene terephthalate,standard cable (black): polyvinyl chloride (PVC),oil resistant cable (gray): oil resistant polyvinyl chloride (PVC) |
| Response frequency | 400Hz |
| Weight | Approx. 247g(approx. 210g) |
Obtain a Quote for Cylindrical Inductive Proximity Sensors PRL30-10DN2 at economical prices. Specifications Overview for PRL30-10DN2 reveals the key specifications include a sensing distance of 10mm designed for a standard target of 30Γ30Γ1mm(iron). This sensor features a Current specification of Current consumption: Max. 10mA and a control output with NPN Normally Closed configurations. It operates on a Wire type and power DC 3-wire type 12-24VDC @(=). Its sensing side size guarantees precise detection, even in challenging environments. The sensor operates efficiently within ambient temperatures of -25 to 70β, storage: -30 to 80β and can be stored at temperatures ranging. A response frequency of 400Hz ensures quick and accurate performance. Take the First Step with a Quote for your requirement of Cylindrical Inductive Proximity Sensors. Our commitment to better pricing and exceptional support sets us apart from other Competitors.
