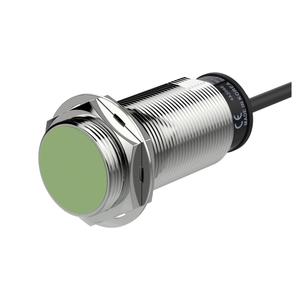

Autonics PRL30-10DN Proximity Sensor
The Autonics PRL30-10DN Proximity Sensor offers 10mm sensing distance, M30 sensing side diameter, and a dependable NPN Normally Open output with DC 3-wire 12β24VDC power for precise detection in industrial environments. Manufactured by Autonics under the Autonics Proximity Sensors range, this model belongs to the PR Series. It ensures maximum 10% hysteresis, supports a 30Γ30Γ1mm iron target, features IP67 protection, and delivers a 400Hz response frequency for stable and high-speed sensing performance.
| Brand | Autonics |
| Product Type | Proximity Sensor |
| Model Number | PRL30-10DN |
Autonics PRL30-10DN Proximity Sensor β Technical Specifications
| Specification | Value |
|---|---|
| Sensing side diameter | M30 |
| Sensing distance | 10mm |
| Hysteresis(distance) | Max. 10% of sensing distance |
| Standard sensing target | 30Γ30Γ1mm(iron) |
| Current specification | Current consumption: Max. 10mA |
| Control output | NPN Normally Open |
| Wire type and power | DC 3-wire type 12-24VDC @(=) |
| Installation | Flush |
| Cable Standard/material | Standard cable |
| Body length | Long body |
| Residual voltage | Max. 1.5V |
| Environment_Ambient temperature | -25 to 70β, storage: -30 to 80β |
| Environment_Ambient humidity | 35 to 95% RH, storage: 35 to 95% RH |
| Protection structure | IP67(IEC standard) |
| Material | Case/Nut: Nikel plated Brass, (connector case of DIA. of sensing side Γ 8 mm: SUS303),washer: Nikel plated Iron, sensing side: polybutylene terephthalate,standard cable (black): polyvinyl chloride (PVC),oil resistant cable (gray): oil resistant polyvinyl chloride (PVC) |
| Response frequency | 400Hz |
| Weight | Approx. 247g(approx. 210g) |
Mail Us for your needs in Cylindrical Inductive Proximity Sensors PRL30-10DN with budget-friendly prices. The Main Technical Parameters of PRL30-10DN include the key specifications include a sensing distance of 10mm designed for a standard target of 30Γ30Γ1mm(iron). This sensor features a Current specification of Current consumption: Max. 10mA and a control output with NPN Normally Open configurations. It operates on a Wire type and power DC 3-wire type 12-24VDC @(=). Its sensing side size guarantees precise detection, even in challenging environments. The sensor operates efficiently within ambient temperatures of -25 to 70β, storage: -30 to 80β and can be stored at temperatures ranging. A response frequency of 400Hz ensures quick and accurate performance. Customize Your Experience with a Quote for your requirement of Cylindrical Inductive Proximity Sensors. Experience the difference with our competitive pricing and superior support over other Suppliers.
