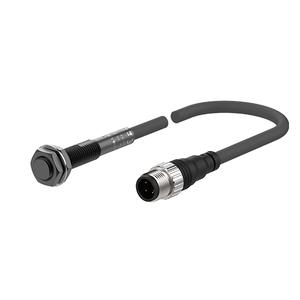

Autonics PRFDAWT08-2DO-IV Proximity Sensor
The Autonics PRFDAWT08-2DO-IV Proximity Sensor offers 2mm sensing distance, 3 to 100 mA output, , 8mm, M12 Connector, 150Hz Response frequency. Manufactured by Autonics under the Autonics Proximity Sensors category, this model belongs to the Autonics PRF Series.
| Brand | Autonics |
| Product Type | Proximity Sensor |
| Model Number | PRFDAWT08-2DO-IV |
Autonics PRFDAWT08-2DO-IV Proximity Sensor – Technical Specifications
| Specification | Value |
|---|---|
| Sensing side diameter | 8mm |
| Sensing distance | 2mm |
| Hysteresis(distance) | Max. 15% of sensing distance |
| Standard sensing target | 12×12×1mm(iron) |
| Connection | Cable connector type |
| Connector type | M12 Connector |
| Power supply | 12 - 24 VDC@(=)(ripple P-P: ≤ 10 %), operating voltage: 10 - 30 VDC@(=) |
| Current specification | Leakage current: Max. 0.8mA |
| Control output | 3 to 100 mA |
| Residual voltage | Max. 3.5V |
| Protection circuit | Surge protection circuit, output short over current protection circuit, reverse polarity protection circuit |
| Insulation resistance | ≥ 50 MΩ (500 VDC@(=) megger) |
| Dielectric strength | Between the charging part and the case: 1,000 VAC~ 50/60 Hz for 1 minute |
| Vibration | 1.5 mm amplitude at frequency of 10 to 55Hz in each X, Y, Z direction for 2 hours |
| Shock | 500 m/s² (≈ 50 G) in each X, Y, Z direction for 10 times) |
| Environment_Ambient temperature | -25 to 70℃, storage: -25 to 70℃ |
| Environment_Ambient humidity | 35 to 95% RH, storage: 35 to 95% RH |
| Protection structure | IP67(IEC standard) |
| Material | Case / Nut: stainless steel 303 (SUS303, PTFE coated), washer: stainless steel 304 (SUS304), sensing side: stainless steel 303 (SUS303, PTFE coated) |
| Response frequency | 150Hz |
| Indicator | Stability indicator (green), operation indicator (red) |
| Weight | Approx. 80g (approx. 55g) |
The Autonics PRFDAWT08-2DO-IV Long-Distance Proximity Sensor delivers consistent detection with a 2mm sensing distance using a standard 12×12×1mm iron target, making it well-suited for precise object sensing in tight or high-vibration setups. It features an 8mm diameter sensing face and M12 cable connector type, enabling secure, tool-free installation and easy maintenance. Operating on a 12–24VDC power supply (tolerant from 10–30VDC), this sensor supports output currents between 3 to 100mA and includes essential safety features like surge protection, short-circuit prevention, and reverse polarity protection.
Housed in a PTFE-coated SUS303 stainless steel body with a rugged IP67 protection structure, the sensor is resistant to moisture, oil, and corrosive chemicals. The unit is built to withstand challenging industrial conditions, including ambient temperatures from -25°C to 70°C and vibration resistance up to 1.5mm amplitude at 10–55Hz along all axes. With a response frequency of 150Hz, it provides fast signal feedback in dynamic environments. Built-in red and green LED indicators simplify alignment and operational diagnostics. This sensor is engineered for industries requiring compact design, extended reliability, and enhanced safety. For more sensor options and advanced specifications, visit Autonics Sensors & Controllers or check out the full series at Autonics Proximity Sensors.
The PRFDAWT08-2DO-IV is commonly used in automated assembly lines, tool changers, robotic grippers, and semiconductor equipment where space is limited and precision is non-negotiable. Maintenance teams prefer this sensor in electrical cabinets and tight enclosures where fast installation and rugged reliability are key. It is also widely used to detect object positioning in linear actuators and mini conveyors. The sensor’s stainless steel build ensures long service life in oil-prone or corrosive zones, reducing replacement frequency. Engineering students and automation trainers use this model in test benches to demonstrate safe switching, protection features, and high-speed object detection. Whether for machine upgrades or OEM panel designs, this sensor supports consistent performance and operational safety across industries.
