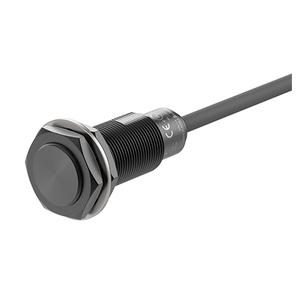

Autonics PRFDA18-7DN-V Proximity Sensor
The Autonics PRFDA18-7DN-V Proximity Sensor offers 7mm sensing distance, Max. 100mA output, , 18mm, M12 plug connector, 80Hz Response frequency. Manufactured by Autonics under the Autonics Proximity Sensors category, this model belongs to the Autonics PRF Series.
| Brand | Autonics |
| Product Type | Proximity Sensor |
| Model Number | PRFDA18-7DN-V |
Autonics PRFDA18-7DN-V Proximity Sensor β Technical Specifications
| Specification | Value |
|---|---|
| Sensing side diameter | 18mm |
| Sensing distance | 7mm |
| Hysteresis(distance) | Max. 15% of sensing distance |
| Standard sensing target | 30Γ30Γ1mm(iron) |
| Connection | Cable type |
| Connector type | M12 plug connector |
| Power supply | 10 - 30 VDC@(=)(ripple P-P: β€ 10 %) |
| Current specification | Current consumption: Max. 20mA |
| Control output | Max. 100mA |
| Residual voltage | β€ 2.5 V |
| Protection circuit | Surge protection circuit, output short over current protection circuit, reverse polarity protection circuit |
| Insulation resistance | β₯ 50 MΞ© (500 VDC@(=) megger) |
| Dielectric strength | Between the charging part and the case: 1,000 VAC~ 50/60 Hz for 1 minute |
| Vibration | 1.5 mm amplitude at frequency of 10 to 55Hz in each X, Y, Z direction for 2 hours |
| Shock | 1,000 m/sΒ² (β 100 G) in each X, Y, Z direction for 10 times |
| Environment_Ambient temperature | -25 to 70β, storage: -25 to 70β |
| Environment_Ambient humidity | 35 to 95% RH, storage: 35 to 95% RH |
| Protection structure | IP66, IP67 (IEC standard) |
| Material | Case / Nut: stainless steel 303 (SUS303, PTFE coated), washer: stainless steel 304 (SUS304), sensing side: stainless steel 303 (SUS303, PTFE coated) |
| Response frequency | 80Hz |
| Indicator | Operation indicator (orange), stable indicator (green), Abnormal detect indicator (cross-flashing green, orange) |
| Weight | β 100 g (β 135 g) |
Ask for the Pricing of Long-Distance Proximity Sensor PRFDA18-7DN-V at unbeatable prices. Detailed Specifications of PRFDA18-7DN-V features the key specifications include a sensing distance of 7mm designed for a standard target of 30Γ30Γ1mm(iron). This sensor features a Current specification of Current consumption: Max. 20mA and a control output with Max. 100mA configurations. It operates on a Wire type and power . Its sensing side size guarantees precise detection, even in challenging environments. The sensor operates efficiently within ambient temperatures of -25 to 70β, storage: -25 to 70β and can be stored at temperatures ranging. A response frequency of 80Hz ensures quick and accurate performance. Now's the Time to Secure a Quote for your requirement of Long-Distance Proximity Sensor. We're committed to offering more favorable pricing and more responsive support than other Traders.
