In most procurement cycles, PRDWT18-14XC-I is considered with Autonics Photoelectric Sensor, Contrinex Proximity Sensor and Autonics Tcn4 Series, giving decision-makers confidence that theyβve chosen the most dependable component.

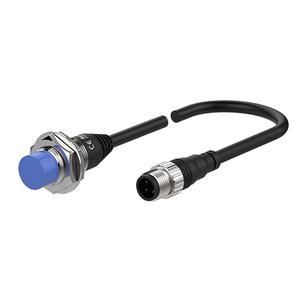

Autonics PRDWT18-14XC-I Proximity Sensor
The Autonics PRDWT18-14XC-I Proximity Sensor offers 14mm sensing distance, Normally Closed output, Non-shield(non-flush), M18, Standard type, 200Hz Response frequency. Manufactured by Autonics under the Autonics Proximity Sensors category, this model belongs to the Autonics PRD Series.
| Brand | Autonics |
| Product Type | Proximity Sensor |
| Model Number | PRDWT18-14XC-I |
Autonics PRDWT18-14XC-I Proximity Sensor β Technical Specifications
| Specification | Value |
|---|---|
| Sensing side diameter | M18 |
| Sensing distance | 14mm |
| Hysteresis(distance) | Max. 10% of sensing distance |
| Standard sensing target | 40Γ40Γ1mm(iron) |
| Current specification | Leakage current: Max. 0.6mA |
| Control output | Normally Closed |
| Wire type and power | DC 2-wire type 12-24VDC @(=) |
| Installation | Non-shield(non-flush) |
| Cable Standard/material | IEC standard |
| Body length | Standard type |
| Non-polarity | Non-polarity |
| Residual voltage | Max. 5V |
| Environment_Ambient temperature | -25 to 70β, storage: -30 to 80β |
| Environment_Ambient humidity | 35 to 95% RH, storage: 35 to 95% RH |
| Protection structure | IP67 |
| Material | Brass(nickel plated) |
| Response frequency | 200Hz |
| Weight | β 62g (β 80g) |
Send Your Inquiry for Long-Distance Inductive Sensor PRDWT18-14XC-I with cost-effective solutions. Essential Technical Specs of PRDWT18-14XC-I are the key specifications include a sensing distance of 14mm designed for a standard target of 40Γ40Γ1mm(iron). This sensor features a Current specification of Leakage current: Max. 0.6mA and a control output with Normally Closed configurations. It operates on a Wire type and power DC 2-wire type 12-24VDC @(=). Its sensing side size guarantees precise detection, even in challenging environments. The sensor operates efficiently within ambient temperatures of -25 to 70β, storage: -30 to 80β and can be stored at temperatures ranging. A response frequency of 200Hz ensures quick and accurate performance. Capture the Best Deal with a Quote for your requirement of Long-Distance Inductive Sensor. Our pricing and support are designed to exceed the standards of other Traders & Suppliers.
