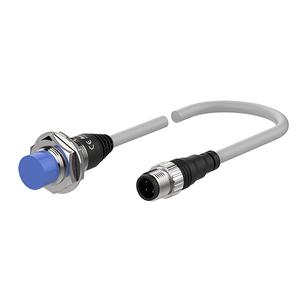

Autonics PRDWT18-14DO-IV Proximity Sensor
The Autonics PRDWT18-14DO-IV Proximity Sensor offers 14mm sensing distance, Normally Open output, Non-shield(non-flush), M18, Standard type, 200Hz Response frequency. Manufactured by Autonics under the Autonics Proximity Sensors category, this model belongs to the Autonics PRD Series.
| Brand | Autonics |
| Product Type | Proximity Sensor |
| Model Number | PRDWT18-14DO-IV |
Autonics PRDWT18-14DO-IV Proximity Sensor β Technical Specifications
| Specification | Value |
|---|---|
| Sensing side diameter | M18 |
| Sensing distance | 14mm |
| Hysteresis(distance) | Max. 10% of sensing distance |
| Standard sensing target | 40Γ40Γ1mm(iron) |
| Current specification | Leakage current: Max. 0.6mA |
| Control output | Normally Open |
| Wire type and power | DC 2-wire type 12-24VDC @(=) |
| Installation | Non-shield(non-flush) |
| Cable Standard/material | Oil resistant cable(IEC standard) |
| Body length | Standard type |
| Residual voltage | Max. 3.5V |
| Environment_Ambient temperature | -25 to 70β, storage: -30 to 80β |
| Environment_Ambient humidity | 35 to 95% RH, storage: 35 to 95% RH |
| Protection structure | IP67 |
| Material | Brass(nickel plated) |
| Response frequency | 200Hz |
| Weight | β 62g (β 80g) |
Give Us a Call for Long-Distance Inductive Sensor PRDWT18-14DO-IV at the lowest pricing. In-depth Technical Analysis of PRDWT18-14DO-IV feature the key specifications include a sensing distance of 14mm designed for a standard target of 40Γ40Γ1mm(iron). This sensor features a Current specification of Leakage current: Max. 0.6mA and a control output with Normally Open configurations. It operates on a Wire type and power DC 2-wire type 12-24VDC @(=). Its sensing side size guarantees precise detection, even in challenging environments. The sensor operates efficiently within ambient temperatures of -25 to 70β, storage: -30 to 80β and can be stored at temperatures ranging. A response frequency of 200Hz ensures quick and accurate performance. Elevate Your Project with a Quote for your requirement of Long-Distance Inductive Sensor. Our promise: More affordable pricing and more personalized support than other Distributors & Dealers.
