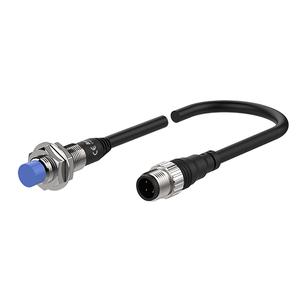

Autonics PRDWT12-4XO-IV Proximity Sensor
The Autonics PRDWT12-4XO-IV Proximity Sensor offers 4mm sensing distance, Normally Open output, Shield(flush), M12, Standard type, 450Hz Response frequency. Manufactured by Autonics under the Autonics Proximity Sensors category, this model belongs to the Autonics PRD Series.
| Brand | Autonics |
| Product Type | Proximity Sensor |
| Model Number | PRDWT12-4XO-IV |
Autonics PRDWT12-4XO-IV Proximity Sensor β Technical Specifications
| Specification | Value |
|---|---|
| Sensing side diameter | M12 |
| Sensing distance | 4mm |
| Hysteresis(distance) | Max. 10% of sensing distance |
| Standard sensing target | 12Γ12Γ1mm(iron) |
| Current specification | Leakage current: Max. 0.6mA |
| Control output | Normally Open |
| Wire type and power | DC 2-wire type 12-24VDC @(=) |
| Installation | Shield(flush) |
| Cable Standard/material | Oil resistant cable(IEC standard) |
| Body length | Standard type |
| Non-polarity | Non-polarity |
| Residual voltage | Max. 5V |
| Environment_Ambient temperature | -25 to 70β, storage: -30 to 80β |
| Environment_Ambient humidity | 35 to 95% RH, storage: 35 to 95% RH |
| Protection structure | IP67 |
| Material | Brass(nickel plated) |
| Response frequency | 450Hz |
| Weight | β 32g (β 55g) |
Send Your Inquiry for Long-Distance Inductive Sensor PRDWT12-4XO-IV with cost-effective solutions. Essential Technical Specs of PRDWT12-4XO-IV are the key specifications include a sensing distance of 4mm designed for a standard target of 12Γ12Γ1mm(iron). This sensor features a Current specification of Leakage current: Max. 0.6mA and a control output with Normally Open configurations. It operates on a Wire type and power DC 2-wire type 12-24VDC @(=). Its sensing side size guarantees precise detection, even in challenging environments. The sensor operates efficiently within ambient temperatures of -25 to 70β, storage: -30 to 80β and can be stored at temperatures ranging. A response frequency of 450Hz ensures quick and accurate performance. Capture the Best Deal with a Quote for your requirement of Long-Distance Inductive Sensor. Our pricing and support are designed to exceed the standards of other Traders & Suppliers.
