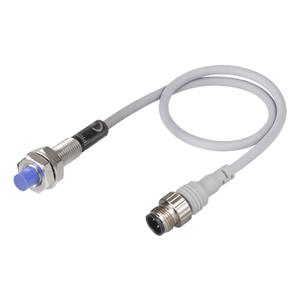

Autonics PRDWT08-4DO-IV Proximity Sensor
The Autonics PRDWT08-4DO-IV Proximity Sensor offers 4mm sensing distance, Normally Open output, Non-shield(non-flush), M8, Standard type, 800Hz Response frequency. Manufactured by Autonics under the Autonics Proximity Sensors category, this model belongs to the Autonics PRD Series.
| Brand | Autonics |
| Product Type | Proximity Sensor |
| Model Number | PRDWT08-4DO-IV |
Autonics PRDWT08-4DO-IV Proximity Sensor β Technical Specifications
| Specification | Value |
|---|---|
| Sensing side diameter | M8 |
| Sensing distance | 4mm |
| Hysteresis(distance) | Max. 15% of sensing distance |
| Standard sensing target | 12Γ12Γ1mm(iron) |
| Current specification | Leakage current: Max. 0.8mA |
| Control output | Normally Open |
| Wire type and power | DC 2-wire type 12-24VDC @(=) |
| Installation | Non-shield(non-flush) |
| Cable Standard/material | Oil resistant cable(IEC standard) |
| Body length | Standard type |
| Residual voltage | Max. 3.5V |
| Environment_Ambient temperature | -25 to 70β, storage: -30 to 80β |
| Environment_Ambient humidity | 35 to 95% RH, storage: 35 to 95% RH |
| Protection structure | IP67 |
| Material | Case/Nut: Nikel plated Brass (case of PRDβ‘T08: SUS303), Washer: Nikel plated Iron, Sensing surface: Heat-resistant ABS (PRDβ‘T08: PBT)Standard cable(Black): Polyvinyl chloride(PVC), Oil resistant cable(Gray): Oil resistant Polyvinyl chloride(PVC) |
| Response frequency | 800Hz |
| Weight | Approx. 25g(approx. 45g) |
Obtain a Quote for Long-Distance Inductive Sensor PRDWT08-4DO-IV at economical prices. Specifications Overview for PRDWT08-4DO-IV reveals the key specifications include a sensing distance of 4mm designed for a standard target of 12Γ12Γ1mm(iron). This sensor features a Current specification of Leakage current: Max. 0.8mA and a control output with Normally Open configurations. It operates on a Wire type and power DC 2-wire type 12-24VDC @(=). Its sensing side size guarantees precise detection, even in challenging environments. The sensor operates efficiently within ambient temperatures of -25 to 70β, storage: -30 to 80β and can be stored at temperatures ranging. A response frequency of 800Hz ensures quick and accurate performance. Take the First Step with a Quote for your requirement of Long-Distance Inductive Sensor. Our commitment to better pricing and exceptional support sets us apart from other Competitors.
