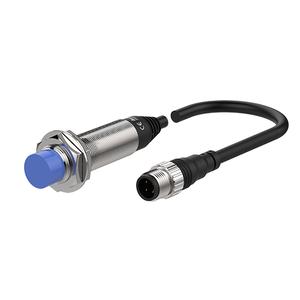

Autonics PRDWL18-14DP Proximity Sensor
The Autonics PRDWL18-14DP Proximity Sensor offers 14mm sensing distance, PNP Normally Open output, Non-shield(non-flush), M18, Long body, 200Hz Response frequency. Manufactured by Autonics under the Autonics Proximity Sensors category, this model belongs to the Autonics PRD Series.
| Brand | Autonics |
| Product Type | Proximity Sensor |
| Model Number | PRDWL18-14DP |
Autonics PRDWL18-14DP Proximity Sensor β Technical Specifications
| Specification | Value |
|---|---|
| Sensing side diameter | M18 |
| Sensing distance | 14mm |
| Hysteresis(distance) | Max. 10% of sensing distance |
| Standard sensing target | 40Γ40Γ1mm(iron) |
| Current specification | Current consumption: Max. 10mA |
| Control output | PNP Normally Open |
| Wire type and power | DC 3-wire type 12-24VDC @(=) |
| Installation | Non-shield(non-flush) |
| Cable Standard/material | Standard connector |
| Body length | Long body |
| Residual voltage | Max. 1.5V |
| Environment_Ambient temperature | -25 to 70β, storage: -30 to 80β |
| Environment_Ambient humidity | 35 to 95% RH, storage: 35 to 95% RH |
| Protection structure | IP67 |
| Material | Brass(nickel plated) |
| Response frequency | 200Hz |
| Weight | β 92g (β 110g) |
Give Us a Call for Long-Distance Inductive Sensor PRDWL18-14DP at the lowest pricing. In-depth Technical Analysis of PRDWL18-14DP feature the key specifications include a sensing distance of 14mm designed for a standard target of 40Γ40Γ1mm(iron). This sensor features a Current specification of Current consumption: Max. 10mA and a control output with PNP Normally Open configurations. It operates on a Wire type and power DC 3-wire type 12-24VDC @(=). Its sensing side size guarantees precise detection, even in challenging environments. The sensor operates efficiently within ambient temperatures of -25 to 70β, storage: -30 to 80β and can be stored at temperatures ranging. A response frequency of 200Hz ensures quick and accurate performance. Elevate Your Project with a Quote for your requirement of Long-Distance Inductive Sensor. Our promise: More affordable pricing and more personalized support than other Distributors & Dealers.
