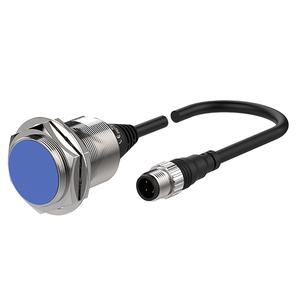

Autonics PRDW30-25DN2 Proximity Sensor
The Autonics PRDW30-25DN2 Proximity Sensor offers 25mm sensing distance, NPN Normally Closed output, Non-shield(non-flush), M30, Standard type, 100Hz Response frequency. Manufactured by Autonics under the Autonics Proximity Sensors category, this model belongs to the Autonics PRD Series.
| Brand | Autonics |
| Product Type | Proximity Sensor |
| Model Number | PRDW30-25DN2 |
Autonics PRDW30-25DN2 Proximity Sensor β Technical Specifications
| Specification | Value |
|---|---|
| Sensing side diameter | M30 |
| Sensing distance | 25mm |
| Hysteresis(distance) | Max. 10% of sensing distance |
| Standard sensing target | 75Γ75Γ1mm(iron) |
| Current specification | Current consumption: Max. 10mA |
| Control output | NPN Normally Closed |
| Wire type and power | DC 3-wire type 12-24VDC @(=) |
| Installation | Non-shield(non-flush) |
| Cable Standard/material | Standard connector |
| Body length | Standard type |
| Residual voltage | Max. 1.5V |
| Environment_Ambient temperature | -25 to 70β, storage: -30 to 80β |
| Environment_Ambient humidity | 35 to 95% RH, storage: 35 to 95% RH |
| Protection structure | IP67 |
| Material | Brass(nickel plated) |
| Response frequency | 100Hz |
| Weight | β 108g (β 145g) |
Send Your Inquiry for Long-Distance Inductive Sensor PRDW30-25DN2 with cost-effective solutions. Essential Technical Specs of PRDW30-25DN2 are the key specifications include a sensing distance of 25mm designed for a standard target of 75Γ75Γ1mm(iron). This sensor features a Current specification of Current consumption: Max. 10mA and a control output with NPN Normally Closed configurations. It operates on a Wire type and power DC 3-wire type 12-24VDC @(=). Its sensing side size guarantees precise detection, even in challenging environments. The sensor operates efficiently within ambient temperatures of -25 to 70β, storage: -30 to 80β and can be stored at temperatures ranging. A response frequency of 100Hz ensures quick and accurate performance. Capture the Best Deal with a Quote for your requirement of Long-Distance Inductive Sensor. Our pricing and support are designed to exceed the standards of other Traders & Suppliers.
