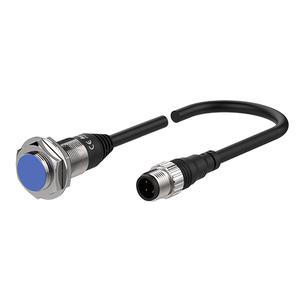

Autonics PRDW18-7DN Proximity Sensor
The Autonics PRDW18-7DN Proximity Sensor offers 7mm sensing distance, NPN Normally Open output, Shield(flush), M18, Standard type, 300Hz Response frequency. Manufactured by Autonics under the Autonics Proximity Sensors category, this model belongs to the Autonics PRD Series.
| Brand | Autonics |
| Product Type | Proximity Sensor |
| Model Number | PRDW18-7DN |
Autonics PRDW18-7DN Proximity Sensor β Technical Specifications
| Specification | Value |
|---|---|
| Sensing side diameter | M18 |
| Sensing distance | 7mm |
| Hysteresis(distance) | Max. 10% of sensing distance |
| Standard sensing target | 20Γ20Γ1mm(iron) |
| Current specification | Current consumption: Max. 10mA |
| Control output | NPN Normally Open |
| Wire type and power | DC 3-wire type 12-24VDC @(=) |
| Installation | Shield(flush) |
| Cable Standard/material | Standard connector |
| Body length | Standard type |
| Residual voltage | Max. 1.5V |
| Environment_Ambient temperature | -25 to 70β, storage: -30 to 80β |
| Environment_Ambient humidity | 35 to 95% RH, storage: 35 to 95% RH |
| Protection structure | IP67 |
| Material | Brass(nickel plated) |
| Response frequency | 300Hz |
| Weight | β 62g (β 80g) |
Please speak to our Technical Engineer for Long-Distance Inductive Sensor PRDW18-7DN at attractive prices. Technical Specs Summary of PRDW18-7DN includes the key specifications include a sensing distance of 7mm designed for a standard target of 20Γ20Γ1mm(iron). This sensor features a Current specification of Current consumption: Max. 10mA and a control output with NPN Normally Open configurations. It operates on a Wire type and power DC 3-wire type 12-24VDC @(=). Its sensing side size guarantees precise detection, even in challenging environments. The sensor operates efficiently within ambient temperatures of -25 to 70β, storage: -30 to 80β and can be stored at temperatures ranging. A response frequency of 300Hz ensures quick and accurate performance. Match Your Needs with a Quote for your requirement of Long-Distance Inductive Sensor. We lead with pricing that's more favorable and support that's more attentive than other Suppliers & Traders.
