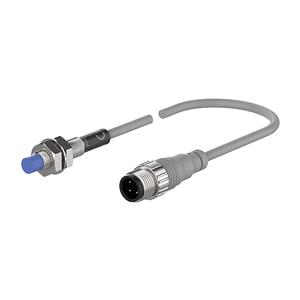

Autonics PRDW08-4DP2-V Proximity Sensor
The Autonics PRDW08-4DP2-V Proximity Sensor offers 4mm sensing distance, PNP Normally Closed output, Non-flush, M8, Standard type, 800Hz Response frequency. Manufactured by Autonics under the Autonics Proximity Sensors category, this model belongs to the Autonics PRD Series.
| Brand | Autonics |
| Product Type | Proximity Sensor |
| Model Number | PRDW08-4DP2-V |
Autonics PRDW08-4DP2-V Proximity Sensor β Technical Specifications
| Specification | Value |
|---|---|
| Sensing side diameter | M8 |
| Sensing distance | 4mm |
| Hysteresis(distance) | Max. 15% of sensing distance |
| Standard sensing target | 12Γ12Γ1mm(iron) |
| Current specification | Current consumption: Max. 10mA |
| Control output | PNP Normally Closed |
| Wire type and power | DC 3-wire type 12-24VDC @(=) |
| Installation | Non-flush |
| Cable Standard/material | Oil resistant cable |
| Body length | Standard type |
| Affection by temperature | β€ Β± 10 % for sensing distance at ambient temperature 20 β(DIA. of sensing side Γ 8 mm: β€ Β± 15 %) |
| Residual voltage | Max. 2V |
| Environment_Ambient temperature | -25 to 70β, storage: -30 to 80β |
| Environment_Ambient humidity | 35 to 95% RH, storage: 35 to 95% RH |
| Protection structure | IP67(IEC standard) |
| Material | Case/Nut: Nikel plated Brass, (connector case of DIA. of sensing side Γ 8 mm: SUS303),washer: Nikel plated Iron, sensing side: polybutylene terephthalate,standard cable (black): polyvinyl chloride (PVC),oil resistant cable (gray): oil resistant polyvinyl chloride (PVC) |
| Response frequency | 800Hz |
| Weight | Approx. 25g(approx. 45g) |
Obtain a Quote for Long-Distance Inductive Sensor PRDW08-4DP2-V at economical prices. Specifications Overview for PRDW08-4DP2-V reveals the key specifications include a sensing distance of 4mm designed for a standard target of 12Γ12Γ1mm(iron). This sensor features a Current specification of Current consumption: Max. 10mA and a control output with PNP Normally Closed configurations. It operates on a Wire type and power DC 3-wire type 12-24VDC @(=). Its sensing side size guarantees precise detection, even in challenging environments. The sensor operates efficiently within ambient temperatures of -25 to 70β, storage: -30 to 80β and can be stored at temperatures ranging. A response frequency of 800Hz ensures quick and accurate performance. Take the First Step with a Quote for your requirement of Long-Distance Inductive Sensor. Our commitment to better pricing and exceptional support sets us apart from other Competitors.
