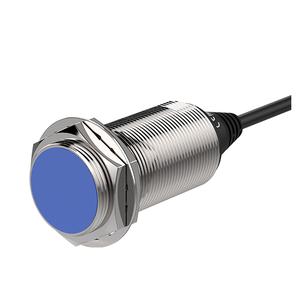

Autonics PRDLT30-15DC Proximity Sensor
The Autonics PRDLT30-15DC Proximity Sensor offers 15mm sensing distance, Normally Closed output, Shield(flush), M30, Long body, 100Hz Response frequency. Manufactured by Autonics under the Autonics Proximity Sensors category, this model belongs to the Autonics PRD Series.
| Brand | Autonics |
| Product Type | Proximity Sensor |
| Model Number | PRDLT30-15DC |
Autonics PRDLT30-15DC Proximity Sensor β Technical Specifications
| Specification | Value |
|---|---|
| Sensing side diameter | M30 |
| Sensing distance | 15mm |
| Hysteresis(distance) | Max. 10% of sensing distance |
| Standard sensing target | 45Γ45Γ1mm(iron) |
| Current specification | Leakage current: Max. 0.6mA |
| Control output | Normally Closed |
| Wire type and power | DC 2-wire type 12-24VDC @(=) |
| Installation | Shield(flush) |
| Cable Standard/material | Standard cable |
| Body length | Long body |
| Residual voltage | Max. 3.5V |
| Environment_Ambient temperature | -25 to 70β, storage: -30 to 80β |
| Environment_Ambient humidity | 35 to 95% RH, storage: 35 to 95% RH |
| Protection structure | IP67 |
| Material | Brass(nickel plated) |
| Response frequency | 100Hz |
| Weight | β 183g (β 220g) |
Obtain a Quote for Long-Distance Inductive Sensor PRDLT30-15DC at economical prices. Specifications Overview for PRDLT30-15DC reveals the key specifications include a sensing distance of 15mm designed for a standard target of 45Γ45Γ1mm(iron). This sensor features a Current specification of Leakage current: Max. 0.6mA and a control output with Normally Closed configurations. It operates on a Wire type and power DC 2-wire type 12-24VDC @(=). Its sensing side size guarantees precise detection, even in challenging environments. The sensor operates efficiently within ambient temperatures of -25 to 70β, storage: -30 to 80β and can be stored at temperatures ranging. A response frequency of 100Hz ensures quick and accurate performance. Take the First Step with a Quote for your requirement of Long-Distance Inductive Sensor. Our commitment to better pricing and exceptional support sets us apart from other Competitors.
