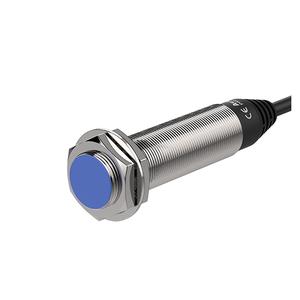

Autonics PRDLT18-7XC Proximity Sensor
The Autonics PRDLT18-7XC Proximity Sensor offers 7mm sensing distance, Normally Closed output, Shield(flush), M18, Long body, 250Hz Response frequency. Manufactured by Autonics under the Autonics Proximity Sensors category, this model belongs to the Autonics PRD Series.
| Brand | Autonics |
| Product Type | Proximity Sensor |
| Model Number | PRDLT18-7XC |
Autonics PRDLT18-7XC Proximity Sensor β Technical Specifications
| Specification | Value |
|---|---|
| Sensing side diameter | M18 |
| Sensing distance | 7mm |
| Hysteresis(distance) | Max. 10% of sensing distance |
| Standard sensing target | 20Γ20Γ1mm(iron) |
| Current specification | Leakage current: Max. 0.6mA |
| Control output | Normally Closed |
| Wire type and power | DC 2-wire type 12-24VDC @(=) |
| Installation | Shield(flush) |
| Cable Standard/material | Standard cable |
| Body length | Long body |
| Non-polarity | Non-polarity |
| Residual voltage | Max. 5V |
| Environment_Ambient temperature | -25 to 70β, storage: -30 to 80β |
| Environment_Ambient humidity | 35 to 95% RH, storage: 35 to 95% RH |
| Protection structure | IP67 |
| Material | Brass(nickel plated) |
| Response frequency | 250Hz |
| Weight | β 127g (β 145g) |
Get A Quote for Long-Distance Inductive Sensor PRDLT18-7XC at the best price. Here are the brief Technical Specifications of PRDLT18-7XC are the key specifications include a sensing distance of 7mm designed for a standard target of 20Γ20Γ1mm(iron). This sensor features a Current specification of Leakage current: Max. 0.6mA and a control output with Normally Closed configurations. It operates on a Wire type and power DC 2-wire type 12-24VDC @(=). Its sensing side size guarantees precise detection, even in challenging environments. The sensor operates efficiently within ambient temperatures of -25 to 70β, storage: -30 to 80β and can be stored at temperatures ranging. A response frequency of 250Hz ensures quick and accurate performance. It's Time to get a Quote for your requirement of Long-Distance Inductive Sensor. We guarantee unmatched pricing and unparalleled support compared to other Distributors.
