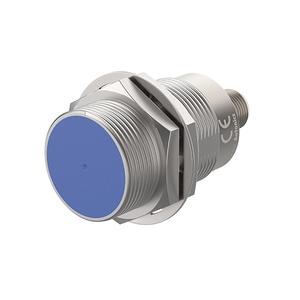

Autonics PRDCMT30-15DO Proximity Sensor
The Autonics PRDCMT30-15DO Proximity Sensor offers 15mm sensing distance, Normally Open output, Shield(flush), M30, Standard type, 100Hz Response frequency. Manufactured by Autonics under the Autonics Proximity Sensors category, this model belongs to the Autonics PRD Series.
| Brand | Autonics |
| Product Type | Proximity Sensor |
| Model Number | PRDCMT30-15DO |
Autonics PRDCMT30-15DO Proximity Sensor β Technical Specifications
| Specification | Value |
|---|---|
| Sensing side diameter | M30 |
| Sensing distance | 15mm |
| Hysteresis(distance) | Max. 10% of sensing distance |
| Standard sensing target | 45Γ45Γ1mm(iron) |
| Current specification | Leakage current: Max. 0.6mA |
| Control output | Normally Open |
| Wire type and power | DC 2-wire type 12-24VDC @(=) |
| Installation | Shield(flush) |
| Cable Standard/material | Standard connector |
| Body length | Standard type |
| Residual voltage | Max. 3.5V |
| Environment_Ambient temperature | -25 to 70β, storage: -30 to 80β |
| Environment_Ambient humidity | 35 to 95% RH, storage: 35 to 95% RH |
| Protection structure | IP67 |
| Material | Brass(nickel plated) |
| Response frequency | 100Hz |
| Weight | Approx. 110g (approx. 150g) |
Ask for the Pricing of Long-Distance Inductive Sensor PRDCMT30-15DO at unbeatable prices. Detailed Specifications of PRDCMT30-15DO features the key specifications include a sensing distance of 15mm designed for a standard target of 45Γ45Γ1mm(iron). This sensor features a Current specification of Leakage current: Max. 0.6mA and a control output with Normally Open configurations. It operates on a Wire type and power DC 2-wire type 12-24VDC @(=). Its sensing side size guarantees precise detection, even in challenging environments. The sensor operates efficiently within ambient temperatures of -25 to 70β, storage: -30 to 80β and can be stored at temperatures ranging. A response frequency of 100Hz ensures quick and accurate performance. Now's the Time to Secure a Quote for your requirement of Long-Distance Inductive Sensor. We're committed to offering more favorable pricing and more responsive support than other Traders.
