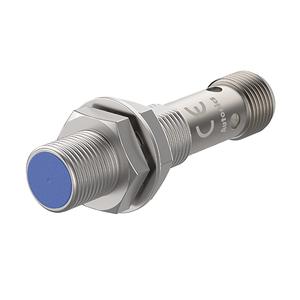

Autonics PRDCMT12-4DC Proximity Sensor
The Autonics PRDCMT12-4DC Proximity Sensor offers 4mm sensing distance, Normally Closed output, Shield(flush), M12, Standard type, 450Hz Response frequency. Manufactured by Autonics under the Autonics Proximity Sensors category, this model belongs to the Autonics PRD Series.
| Brand | Autonics |
| Product Type | Proximity Sensor |
| Model Number | PRDCMT12-4DC |
Autonics PRDCMT12-4DC Proximity Sensor β Technical Specifications
| Specification | Value |
|---|---|
| Sensing side diameter | M12 |
| Sensing distance | 4mm |
| Hysteresis(distance) | Max. 10% of sensing distance |
| Standard sensing target | 12Γ12Γ1mm(iron) |
| Current specification | Leakage current: Max. 0.6mA |
| Control output | Normally Closed |
| Wire type and power | DC 2-wire type 12-24VDC @(=) |
| Installation | Shield(flush) |
| Cable Standard/material | Standard connector |
| Body length | Standard type |
| Residual voltage | Max. 3.5V |
| Environment_Ambient temperature | -25 to 70β, storage: -30 to 80β |
| Environment_Ambient humidity | 35 to 95% RH, storage: 35 to 95% RH |
| Protection structure | IP67 |
| Material | Brass(nickel plated) |
| Response frequency | 450Hz |
| Weight | β 20g (β 50g) |
Please speak to our Technical Engineer for Long-Distance Inductive Sensor PRDCMT12-4DC at attractive prices. Technical Specs Summary of PRDCMT12-4DC includes the key specifications include a sensing distance of 4mm designed for a standard target of 12Γ12Γ1mm(iron). This sensor features a Current specification of Leakage current: Max. 0.6mA and a control output with Normally Closed configurations. It operates on a Wire type and power DC 2-wire type 12-24VDC @(=). Its sensing side size guarantees precise detection, even in challenging environments. The sensor operates efficiently within ambient temperatures of -25 to 70β, storage: -30 to 80β and can be stored at temperatures ranging. A response frequency of 450Hz ensures quick and accurate performance. Match Your Needs with a Quote for your requirement of Long-Distance Inductive Sensor. We lead with pricing that's more favorable and support that's more attentive than other Suppliers & Traders.
