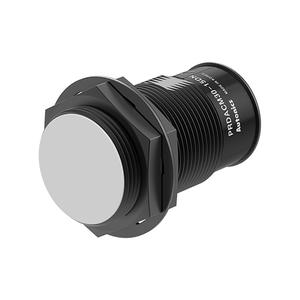

Autonics PRDACMT30-15DC-I Proximity Sensor
The Autonics PRDACMT30-15DC-I Proximity Sensor offers 15mm sensing distance, Normally Closed output, Shield(flush), M30, Standard type, 100Hz Response frequency. Manufactured by Autonics under the Autonics Proximity Sensors category, this model belongs to the Autonics PRD Series.
| Brand | Autonics |
| Product Type | Proximity Sensor |
| Model Number | PRDACMT30-15DC-I |
Autonics PRDACMT30-15DC-I Proximity Sensor β Technical Specifications
| Specification | Value |
|---|---|
| Sensing side diameter | M30 |
| Sensing distance | 15mm |
| Hysteresis(distance) | Max. 10% of sensing distance |
| Standard sensing target | 45Γ45Γ1mm(iron) |
| Current specification | Leakage current: Max. 0.6mA |
| Control output | Normally Closed |
| Wire type and power | DC 2-wire type 12-24VDC @(=) |
| Installation | Shield(flush) |
| Cable Standard/material | IEC standard |
| Body length | Standard type |
| Residual voltage | Max. 3.5V |
| Environment_Ambient temperature | -25 to 70β, storage: -30 to 80β |
| Environment_Ambient humidity | 35 to 95% RH, storage: 35 to 95% RH |
| Protection structure | IP67 |
| Material | Brass(teflon coated) |
| Response frequency | 100Hz |
| Weight | β 134g (β 146g) |
Mail Us for your needs in Long-Distance Inductive Sensor PRDACMT30-15DC-I with budget-friendly prices. The Main Technical Parameters of PRDACMT30-15DC-I include the key specifications include a sensing distance of 15mm designed for a standard target of 45Γ45Γ1mm(iron). This sensor features a Current specification of Leakage current: Max. 0.6mA and a control output with Normally Closed configurations. It operates on a Wire type and power DC 2-wire type 12-24VDC @(=). Its sensing side size guarantees precise detection, even in challenging environments. The sensor operates efficiently within ambient temperatures of -25 to 70β, storage: -30 to 80β and can be stored at temperatures ranging. A response frequency of 100Hz ensures quick and accurate performance. Customize Your Experience with a Quote for your requirement of Long-Distance Inductive Sensor. Experience the difference with our competitive pricing and superior support over other Suppliers.
