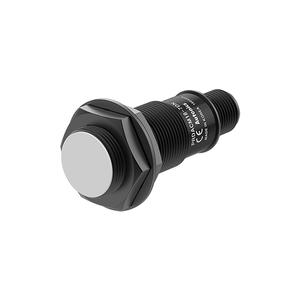

Autonics PRDACMT18-7DC Proximity Sensor
The Autonics PRDACMT18-7DC Proximity Sensor offers 7mm sensing distance, Normally Closed output, Shield(flush), M18, Standard type, 250Hz Response frequency. Manufactured by Autonics under the Autonics Proximity Sensors category, this model belongs to the Autonics PRD Series.
| Brand | Autonics |
| Product Type | Proximity Sensor |
| Model Number | PRDACMT18-7DC |
Autonics PRDACMT18-7DC Proximity Sensor β Technical Specifications
| Specification | Value |
|---|---|
| Sensing side diameter | M18 |
| Sensing distance | 7mm |
| Hysteresis(distance) | Max. 10% of sensing distance |
| Standard sensing target | 20Γ20Γ1mm(iron) |
| Current specification | Leakage current: Max. 0.6mA |
| Control output | Normally Closed |
| Wire type and power | DC 2-wire type 12-24VDC @(=) |
| Installation | Shield(flush) |
| Cable Standard/material | Standard connector |
| Body length | Standard type |
| Residual voltage | Max. 3.5V |
| Environment_Ambient temperature | -25 to 70β, storage: -30 to 80β |
| Environment_Ambient humidity | 35 to 95% RH, storage: 35 to 95% RH |
| Protection structure | IP67 |
| Material | Brass(teflon coated) |
| Response frequency | 250Hz |
| Weight | β 49g (β 61g) |
Send Your Inquiry for Long-Distance Inductive Sensor PRDACMT18-7DC with cost-effective solutions. Essential Technical Specs of PRDACMT18-7DC are the key specifications include a sensing distance of 7mm designed for a standard target of 20Γ20Γ1mm(iron). This sensor features a Current specification of Leakage current: Max. 0.6mA and a control output with Normally Closed configurations. It operates on a Wire type and power DC 2-wire type 12-24VDC @(=). Its sensing side size guarantees precise detection, even in challenging environments. The sensor operates efficiently within ambient temperatures of -25 to 70β, storage: -30 to 80β and can be stored at temperatures ranging. A response frequency of 250Hz ensures quick and accurate performance. Capture the Best Deal with a Quote for your requirement of Long-Distance Inductive Sensor. Our pricing and support are designed to exceed the standards of other Traders & Suppliers.
