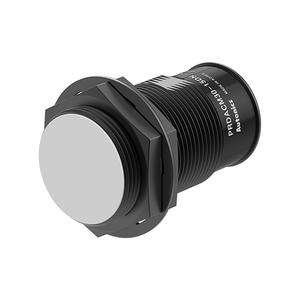

Autonics PRDACM30-15DN2 Proximity Sensor
The Autonics PRDACM30-15DN2 Proximity Sensor offers 15mm sensing distance, NPN Normally Closed output, Shield(flush), M30, Standard type, 100Hz Response frequency. Manufactured by Autonics under the Autonics Proximity Sensors category, this model belongs to the Autonics PRD Series.
| Brand | Autonics |
| Product Type | Proximity Sensor |
| Model Number | PRDACM30-15DN2 |
Autonics PRDACM30-15DN2 Proximity Sensor β Technical Specifications
| Specification | Value |
|---|---|
| Sensing side diameter | M30 |
| Sensing distance | 15mm |
| Hysteresis(distance) | Max. 10% of sensing distance |
| Standard sensing target | 45Γ45Γ1mm(iron) |
| Current specification | Current consumption: Max. 10mA |
| Control output | NPN Normally Closed |
| Wire type and power | DC 3-wire type 12-24VDC @(=) |
| Installation | Shield(flush) |
| Cable Standard/material | Standard connector |
| Body length | Standard type |
| Residual voltage | Max. 1.5V |
| Environment_Ambient temperature | -25 to 70β, storage: -30 to 80β |
| Environment_Ambient humidity | 35 to 95% RH, storage: 35 to 95% RH |
| Protection structure | IP67 |
| Material | Brass(teflon coated) |
| Response frequency | 100Hz |
| Weight | β 138g (β 197g) |
Ask for the Pricing of Long-Distance Inductive Sensor PRDACM30-15DN2 at unbeatable prices. Detailed Specifications of PRDACM30-15DN2 features the key specifications include a sensing distance of 15mm designed for a standard target of 45Γ45Γ1mm(iron). This sensor features a Current specification of Current consumption: Max. 10mA and a control output with NPN Normally Closed configurations. It operates on a Wire type and power DC 3-wire type 12-24VDC @(=). Its sensing side size guarantees precise detection, even in challenging environments. The sensor operates efficiently within ambient temperatures of -25 to 70β, storage: -30 to 80β and can be stored at temperatures ranging. A response frequency of 100Hz ensures quick and accurate performance. Now's the Time to Secure a Quote for your requirement of Long-Distance Inductive Sensor. We're committed to offering more favorable pricing and more responsive support than other Traders.
