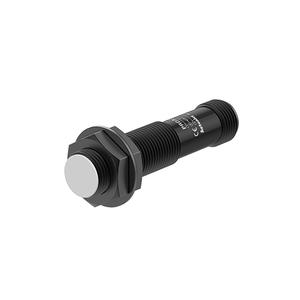

Autonics PRDACM12-4DN2 Proximity Sensor
The Autonics PRDACM12-4DN2 Proximity Sensor offers 4mm sensing distance, NPN Normally Closed output, Shield(flush), M12, Standard type, 500Hz Response frequency. Manufactured by Autonics under the Autonics Proximity Sensors category, this model belongs to the Autonics PRD Series.
| Brand | Autonics |
| Product Type | Proximity Sensor |
| Model Number | PRDACM12-4DN2 |
Autonics PRDACM12-4DN2 Proximity Sensor β Technical Specifications
| Specification | Value |
|---|---|
| Sensing side diameter | M12 |
| Sensing distance | 4mm |
| Hysteresis(distance) | Max. 10% of sensing distance |
| Standard sensing target | 12Γ12Γ1mm(iron) |
| Current specification | Current consumption: Max. 10mA |
| Control output | NPN Normally Closed |
| Wire type and power | DC 3-wire type 12-24VDC @(=) |
| Installation | Shield(flush) |
| Cable Standard/material | Standard connector |
| Body length | Standard type |
| Residual voltage | Max. 1.5V |
| Environment_Ambient temperature | -25 to 70β, storage: -30 to 80β |
| Environment_Ambient humidity | 35 to 95% RH, storage: 35 to 95% RH |
| Protection structure | IP67 |
| Material | Brass(teflon coated) |
| Response frequency | 500Hz |
| Weight | β 20g (β 49g) |
Mail Us for your needs in Long-Distance Inductive Sensor PRDACM12-4DN2 with budget-friendly prices. The Main Technical Parameters of PRDACM12-4DN2 include the key specifications include a sensing distance of 4mm designed for a standard target of 12Γ12Γ1mm(iron). This sensor features a Current specification of Current consumption: Max. 10mA and a control output with NPN Normally Closed configurations. It operates on a Wire type and power DC 3-wire type 12-24VDC @(=). Its sensing side size guarantees precise detection, even in challenging environments. The sensor operates efficiently within ambient temperatures of -25 to 70β, storage: -30 to 80β and can be stored at temperatures ranging. A response frequency of 500Hz ensures quick and accurate performance. Customize Your Experience with a Quote for your requirement of Long-Distance Inductive Sensor. Experience the difference with our competitive pricing and superior support over other Suppliers.
