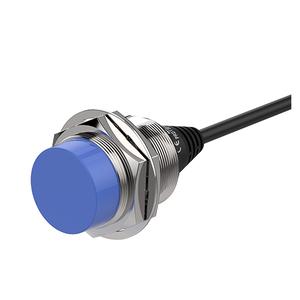

Autonics PRD30-25DP Proximity Sensor
The Autonics PRD30-25DP Proximity Sensor delivers a 25mm sensing distance with PNP Normally Open output and a strong M30 sensing side diameter built for accurate and long-range detection. Manufactured by Autonics, this durable Autonics Proximity Sensor belongs to the reliable Autonics PRD Series, designed to ensure precision and stable operation in industrial automation. It supports DC 3-wire type 12β24VDC operation, offers a robust IP67 protection structure, and provides a 100Hz response frequency. The sensor detects 75Γ75Γ1mm (iron) standard targets with maximum 10% hysteresis, ensuring consistent and efficient performance in harsh factory environments.
| Brand | Autonics |
| Product Type | Proximity Sensor |
| Model Number | PRD30-25DP |
Autonics PRD30-25DP Proximity Sensor β Technical Specifications
| Specification | Value |
|---|---|
| Sensing side diameter | M30 |
| Sensing distance | 25mm |
| Hysteresis(distance) | Max. 10% of sensing distance |
| Standard sensing target | 75Γ75Γ1mm(iron) |
| Current specification | Current consumption: Max. 10mA |
| Control output | PNP Normally Open |
| Wire type and power | DC 3-wire type 12-24VDC @(=) |
| Installation | Non-shield(non-flush) |
| Cable Standard/material | Standard cable |
| Body length | Standard type |
| Residual voltage | Max. 1.5V |
| Environment_Ambient temperature | -25 to 70β, storage: -30 to 80β |
| Environment_Ambient humidity | 35 to 95% RH, storage: 35 to 95% RH |
| Protection structure | IP67 |
| Material | Brass(nickel plated) |
| Response frequency | 100Hz |
| Weight | β 143g (β 180g) |
Autonics designed the PRD30-25DP Long-Distance Inductive Sensor with a rugged M30 housing and an extended 25mm sensing distance, optimized for detecting 75Γ75Γ1mm iron targets. Operating on a DC 3-wire 12β24VDC input, it delivers a PNP Normally Open output that simplifies integration with PLCs and controllers. With current consumption below 10mA, residual voltage under 1.5V, and a 100Hz response frequency, the sensor offers reliable, energy-efficient performance. Its non-flush mounting design allows long-range detection without false triggering from nearby metals. The nickel-plated brass body and IP67 protection rating provide strong resistance to oil, dust, and moisture, while temperature tolerance from β25β to 70β supports continuous operation in harsh factory environments. Engineers choose the PRD30-25DP for its stability, durability, and proven long-life sensing in heavy-duty applications.
The Autonics PRD30-25DP Proximity Sensor is widely used in conveyor systems, robotic arms, material handling lines, and machine tool monitoring where long-range detection is essential. Maintenance teams value its non-flush installation that reduces false signals, while system integrators prefer the simple wiring and compatibility with standard industrial controllers. For students and training labs, this sensor provides a practical example of how M30 sensors operate in automation systems. By ensuring stable contactless detection even in dusty, oily, and high-humidity environments, the PRD30-25DP improves uptime, reduces maintenance, and increases efficiency in modern factories.
The Autonics Proximity Sensors range includes advanced models designed for precision and reliability. The PRD30-25DP, often referred to as PRD30 or 25DP, is recognized as a dependable long range inductive sensor for industrial buyers, wholesalers, and distributors. This M30 sensor delivers accurate results in heavy-duty automation, combining extended sensing range with low power consumption. Trusted by engineers across industries, the PRD30-25DP strengthens Autonicsβ reputation as a leader in durable and efficient sensing technology.
