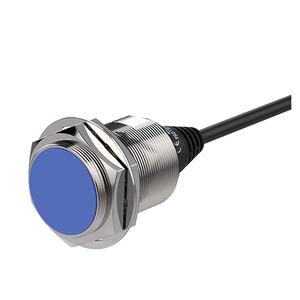

Autonics PRD30-15D-IL2 Proximity Sensor
The Autonics PRD30-15D-IL2 Proximity Sensor offers 15mm sensing distance, Max. 100mA output, Flush, M30, Standard type, 100Hz Response frequency. Manufactured by Autonics under the Autonics Proximity Sensors category, this model belongs to the Autonics PRD Series.
| Brand | Autonics |
| Product Type | Proximity Sensor |
| Model Number | PRD30-15D-IL2 |
Autonics PRD30-15D-IL2 Proximity Sensor β Technical Specifications
| Specification | Value |
|---|---|
| Sensing side diameter | M30 |
| Sensing distance | 15mm |
| Hysteresis(distance) | Max. 10% of sensing distance |
| Standard sensing target | 45Γ45Γ1mm(iron) |
| Current specification | IO-Link mode: β€ 25 mA, SIO mode: β€ 20 mA |
| Control output | Max. 100mA |
| Wire type and power | DC 3-wire type 12-24VDC @(=) |
| Installation | Flush |
| Cable Standard/material | Standard cable |
| Body length | Standard type |
| Residual voltage | Max. 2V |
| Environment_Ambient temperature | -25 to 70β, storage: -25 to 70β |
| Environment_Ambient humidity | 35 to 95% RH, storage: 35 to 95% RH |
| Protection structure | IP67(IEC standard) |
| Material | Standard cable(Black): Polyvinyl chloride(PVC), Oil resistant cable(Gray): Polyvinyl chloride(Oil resistant PVC), Case/Nut: Nikel plated Brass, Washer: Nikel plated Iron, Sensing surface: PBT |
| Response frequency | 100Hz |
| Weight | β 143g (β 180g) |
Call us for Long-Distance Inductive Sensor PRD30-15D-IL2 at the best rates. Technical Attributes of PRD30-15D-IL2 are the key specifications include a sensing distance of 15mm designed for a standard target of 45Γ45Γ1mm(iron). This sensor features a Current specification of IO-Link mode: β€ 25 mA, SIO mode: β€ 20 mA and a control output with Max. 100mA configurations. It operates on a Wire type and power DC 3-wire type 12-24VDC @(=). Its sensing side size guarantees precise detection, even in challenging environments. The sensor operates efficiently within ambient temperatures of -25 to 70β, storage: -25 to 70β and can be stored at temperatures ranging. A response frequency of 100Hz ensures quick and accurate performance. Unlock Exclusive Pricing with a Quote for your requirement of Long-Distance Inductive Sensor. Trust in our ability to provide more advantageous pricing and dedicated support beyond other other Dealers.
