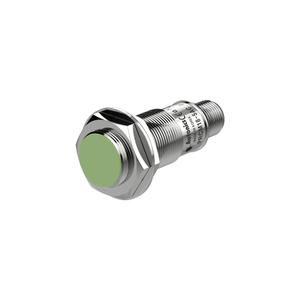

Autonics PRCMT18-5DO Proximity Sensor
The Autonics PRCMT18-5DO Proximity Sensor offers a 5mm sensing distance with Normally Open output and a reliable M18 sensing side diameter for industrial object detection. Designed by Autonics, this proximity sensor from the PR Series ensures hysteresis max. 10 of sensing distance and supports a standard sensing target 18Γ18Γ1mm (iron). It operates on a DC 2-wire type 12β24VDC connection, delivers a 350Hz response frequency, and offers durable IP67-rated protection suitable for harsh industrial environments.
| Brand | Autonics |
| Product Type | Proximity Sensor |
| Model Number | PRCMT18-5DO |
Autonics PRCMT18-5DO Proximity Sensor β Technical Specifications
| Specification | Value |
|---|---|
| Sensing side diameter | M18 |
| Sensing distance | 5mm |
| Hysteresis(distance) | Max. 10% of sensing distance |
| Standard sensing target | 18Γ18Γ1mm(iron) |
| Current specification | Leakage current: Max. 0.6mA |
| Control output | Normally Open |
| Wire type and power | DC 2-wire type 12-24VDC @(=) |
| Installation | Flush |
| Cable Standard/material | Standard connector |
| Body length | Standard type |
| Residual voltage | Max. 3.5V |
| Environment_Ambient temperature | -25 to 70β, storage: -30 to 80β |
| Environment_Ambient humidity | 35 to 95% RH, storage: 35 to 95% RH |
| Protection structure | IP67(IEC standard) |
| Material | Case/Nut: Nikel plated Brass, (connector case of DIA. of sensing side Γ 8 mm: SUS303),washer: Nikel plated Iron, sensing side: polybutylene terephthalate,standard cable (black): polyvinyl chloride (PVC),oil resistant cable (gray): oil resistant polyvinyl chloride (PVC) |
| Response frequency | 350Hz |
| Weight | Approx. 60g(approx. 48g) |
Get A Quote for Cylindrical Inductive Proximity Sensors PRCMT18-5DO at the best price. Here are the brief Technical Specifications of PRCMT18-5DO are the key specifications include a sensing distance of 5mm designed for a standard target of 18Γ18Γ1mm(iron). This sensor features a Current specification of Leakage current: Max. 0.6mA and a control output with Normally Open configurations. It operates on a Wire type and power DC 2-wire type 12-24VDC @(=). Its sensing side size guarantees precise detection, even in challenging environments. The sensor operates efficiently within ambient temperatures of -25 to 70β, storage: -30 to 80β and can be stored at temperatures ranging. A response frequency of 350Hz ensures quick and accurate performance. It's Time to get a Quote for your requirement of Cylindrical Inductive Proximity Sensors. We guarantee unmatched pricing and unparalleled support compared to other Distributors.
