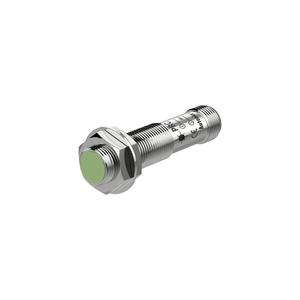

Autonics PRCMT12-2DO Cylindrical Inductive Proximity Sensor
Autonics PRCMT12-2DO Cylindrical Inductive Proximity Sensor provides 2mm sensing distance with M12 flush mounting and Normally Open output. Manufactured by Autonics, PRCMT12-2DO belongs to Autonics Cylindrical Inductive Proximity Sensors and the PR Series, operating on DC 2-wire 12–24VDC with IP67 protection, 1.5kHz response frequency, max. 0.6mA leakage current, standard connector, and 12×12×1mm iron target.
| Brand | Autonics |
| Product Type | Proximity Sensor |
| Model Number | PRCMT12-2DO |
Autonics PRCMT12-2DO Cylindrical Inductive Proximity Sensor - Technical Specifications
| Specification | Value |
|---|---|
| Sensing side diameter | M12 |
| Sensing distance | 2mm |
| Hysteresis(distance) | Max. 10% of sensing distance |
| Standard sensing target | 12×12×1mm(iron) |
| Current specification | Leakage current: Max. 0.6mA |
| Control output | Normally Open |
| Wire type and power | DC 2-wire type 12-24VDC @(=) |
| Installation | Flush |
| Cable Standard/material | Standard connector |
| Body length | Standard type |
| Residual voltage | Max. 3.5V |
| Environment_Ambient temperature | -25 to 70℃, storage: -30 to 80℃ |
| Environment_Ambient humidity | 35 to 95% RH, storage: 35 to 95% RH |
| Protection structure | IP67(IEC standard) |
| Material | Case/Nut: Nikel plated Brass, (connector case of DIA. of sensing side Ø 8 mm: SUS303),washer: Nikel plated Iron, sensing side: polybutylene terephthalate,standard cable (black): polyvinyl chloride (PVC),oil resistant cable (gray): oil resistant polyvinyl chloride (PVC) |
| Response frequency | 1.5kHz |
| Weight | Approx. 38g(approx. 26g) |
ThePRCMT12-2DO Autonics Cylindrical Inductive Proximity Sensors is developed for precise non-contact metal detection in industrial automation systems. PRCMT12-2DO delivers 2mm sensing distance, DC 2-wire 12–24VDC operation, and Normally Open output configuration. With IP67 protection and 1.5kHz response frequency, it ensures fast and stable switching performance. This model belongs to the PR Series and supports defined sensing requirements across automation installations.
In conveyor systems, compact assembly stations, and packaging machinery, PRCMT12-2DO detects 12×12×1mm iron targets reliably. The M12 cylindrical flush structure enables installation in limited mounting spaces. Its DC 2-wire configuration simplifies wiring in control panels, while IP67 sealing protects against dust and moisture exposure. These parameters support consistent detection accuracy in repetitive industrial operations.
PRCMT12-2DO within Autonics Cylindrical Inductive Proximity Sensors integrates 2mm sensing distance, DC 12–24V operation, and IP67 protection in a compact M12 housing. As part of the PR Series, PRCMT12-2DO maintains controlled electrical characteristics and stable response behavior. Autonics ensures defined manufacturing consistency, making this sensor suitable for Indian industrial automation systems requiring predictable inductive detection performance.
