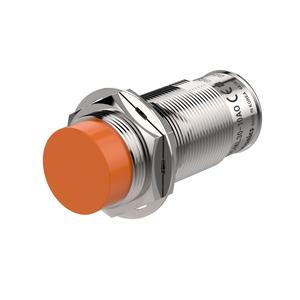

Autonics PRCML30-15DP Cylindrical Inductive Proximity Sensor
Autonics PRCML30-15DP Cylindrical Inductive Proximity Sensor provides 15mm sensing distance with M30 non-flush mounting and PNP Normally Open output. Manufactured by Autonics, PRCML30-15DP belongs to Autonics Cylindrical Inductive Proximity Sensors and the PR Series, operating on DC 3-wire 12–24VDC with IP67 protection, 200Hz response frequency, max. 10mA current consumption, long body type, standard connector, and 45×45×1mm iron target.
| Brand | Autonics |
| Product Type | Proximity Sensor |
| Model Number | PRCML30-15DP |
Autonics PRCML30-15DP Cylindrical Inductive Proximity Sensor - Technical Specifications
| Specification | Value |
|---|---|
| Sensing side diameter | M30 |
| Sensing distance | 15mm |
| Hysteresis(distance) | Max. 10% of sensing distance |
| Standard sensing target | 45×45×1mm(iron) |
| Current specification | Current consumption: Max. 10mA |
| Control output | PNP Normally Open |
| Wire type and power | DC 3-wire type 12-24VDC @(=) |
| Installation | Non-flush |
| Cable Standard/material | Standard connector |
| Body length | Long body |
| Residual voltage | Max. 1.5V |
| Environment_Ambient temperature | -25 to 70℃, storage: -30 to 80℃ |
| Environment_Ambient humidity | 35 to 95% RH, storage: 35 to 95% RH |
| Protection structure | IP67(IEC standard) |
| Material | Case/Nut: Nikel plated Brass, (connector case of DIA. of sensing side Ø 8 mm: SUS303),washer: Nikel plated Iron, sensing side: polybutylene terephthalate,standard cable (black): polyvinyl chloride (PVC),oil resistant cable (gray): oil resistant polyvinyl chloride (PVC) |
| Response frequency | 200Hz |
| Weight | Approx. 181g(approx. 169g) |
ThePRCML30-15DP Autonics Cylindrical Inductive Proximity Sensors is designed for non-contact metal detection in industrial automation systems. PRCML30-15DP delivers 15mm sensing distance, PNP Normally Open output, and DC 3-wire 12–24VDC operation. With IP67 protection and 200Hz response frequency, it ensures stable switching performance. This model belongs to the PR Series and supports defined sensing requirements across automation installations.
In conveyor systems, packaging machinery, and automated assembly lines, PRCML30-15DP reliably detects 45×45×1mm iron targets. The M30 cylindrical non-flush long-body configuration allows secure integration into machine panels. Its PNP output enables direct PLC digital input interfacing, while IP67 sealing protects against dust and moisture. These specifications support consistent detection accuracy in repetitive industrial operations.
PRCML30-15DP within Autonics Cylindrical Inductive Proximity Sensors integrates 15mm sensing distance, DC 12–24V operation, and IP67 protection inside a long-body M30 housing. As part of the PR Series, PRCML30-15DP maintains controlled electrical characteristics and stable response behavior. Autonics ensures defined manufacturing consistency, making this sensor suitable for Indian industrial automation systems requiring predictable inductive detection performance.
