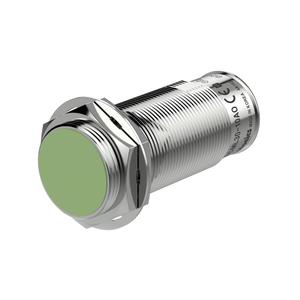

Autonics PRCML30-10AC Proximity Sensor
The Autonics PRCML30-10AC Proximity Sensor offers 10mm sensing distance, Normally Closed output, Flush, M30, Long body, 20Hz Response frequency. Manufactured by Autonics under the Autonics Proximity Sensors category, this model belongs to the Autonics PR Series.
| Brand | Autonics |
| Product Type | Proximity Sensor |
| Model Number | PRCML30-10AC |
Autonics PRCML30-10AC Proximity Sensor β Technical Specifications
| Specification | Value |
|---|---|
| Sensing side diameter | M30 |
| Sensing distance | 10mm |
| Hysteresis(distance) | Max. 10% of sensing distance |
| Standard sensing target | 30Γ30Γ1mm(iron) |
| Current specification | Leakage current: Max. 2.5mA |
| Control output | Normally Closed |
| Wire type and power | AC 2-wire type 100-240VAC~ |
| Installation | Flush |
| Cable Standard/material | Standard connector |
| Body length | Long body |
| Insulation type | Double insulation or reinforced insulation(mark: @(INS), dielectric strength between the measuring input part and the power part: 1kV) |
| Residual voltage | Max. 10V |
| Environment_Ambient temperature | -25 to 70β, storage: -30 to 80β |
| Environment_Ambient humidity | 35 to 95% RH, storage: 35 to 95% RH |
| Protection structure | IP67(IEC standard) |
| Material | Brass(nickel plated) |
| Response frequency | 20Hz |
| Weight | Approx. 194g(approx. 182g) |
Get A Quote for Cylindrical Inductive Proximity Sensor PRCML30-10AC at the best price. Here are the brief Technical Specifications of PRCML30-10AC are the key specifications include a sensing distance of 10mm designed for a standard target of 30Γ30Γ1mm(iron). This sensor features a Current specification of Leakage current: Max. 2.5mA and a control output with Normally Closed configurations. It operates on a Wire type and power AC 2-wire type 100-240VAC~. Its sensing side size guarantees precise detection, even in challenging environments. The sensor operates efficiently within ambient temperatures of -25 to 70β, storage: -30 to 80β and can be stored at temperatures ranging. A response frequency of 20Hz ensures quick and accurate performance. It's Time to get a Quote for your requirement of Cylindrical Inductive Proximity Sensor. We guarantee unmatched pricing and unparalleled support compared to other Distributors.
