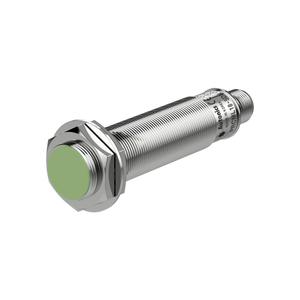

Autonics PRCML18-5DN Proximity Sensor
The Autonics PRCML18-5DN Proximity Sensor offers 5mm sensing distance, NPN Normally Open output, Flush, M18, Long body, 500Hz Response frequency. Manufactured by Autonics under the Autonics Proximity Sensors category, this model belongs to the Autonics PR Series.
| Brand | Autonics |
| Product Type | Proximity Sensor |
| Model Number | PRCML18-5DN |
Autonics PRCML18-5DN Proximity Sensor β Technical Specifications
| Specification | Value |
|---|---|
| Sensing side diameter | M18 |
| Sensing distance | 5mm |
| Hysteresis(distance) | Max. 10% of sensing distance |
| Standard sensing target | 18Γ18Γ1mm(iron) |
| Current specification | Current consumption: Max. 10mA |
| Control output | NPN Normally Open |
| Wire type and power | DC 3-wire type 12-24VDC @(=) |
| Installation | Flush |
| Cable Standard/material | Standard connector |
| Body length | Long body |
| Residual voltage | Max. 1.5V |
| Environment_Ambient temperature | -25 to 70β, storage: -30 to 80β |
| Environment_Ambient humidity | 35 to 95% RH, storage: 35 to 95% RH |
| Protection structure | IP67(IEC standard) |
| Material | Case/Nut: Nikel plated Brass, (connector case of DIA. of sensing side Γ 8 mm: SUS303),washer: Nikel plated Iron, sensing side: polybutylene terephthalate,standard cable (black): polyvinyl chloride (PVC),oil resistant cable (gray): oil resistant polyvinyl chloride (PVC) |
| Response frequency | 500Hz |
| Weight | Approx. 85g(approx. 73g) |
Get A Quote for Cylindrical Inductive Proximity Sensors PRCML18-5DN at the best price. Here are the brief Technical Specifications of PRCML18-5DN are the key specifications include a sensing distance of 5mm designed for a standard target of 18Γ18Γ1mm(iron). This sensor features a Current specification of Current consumption: Max. 10mA and a control output with NPN Normally Open configurations. It operates on a Wire type and power DC 3-wire type 12-24VDC @(=). Its sensing side size guarantees precise detection, even in challenging environments. The sensor operates efficiently within ambient temperatures of -25 to 70β, storage: -30 to 80β and can be stored at temperatures ranging. A response frequency of 500Hz ensures quick and accurate performance. It's Time to get a Quote for your requirement of Cylindrical Inductive Proximity Sensors. We guarantee unmatched pricing and unparalleled support compared to other Distributors.
