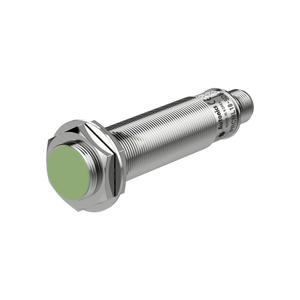

Autonics PRCML18-5AC Proximity Sensor
The Autonics PRCML18-5AC Proximity Sensor offers 5mm sensing distance, Normally Closed output, Flush, M18, Long body, 20Hz Response frequency. Manufactured by Autonics under the Autonics Proximity Sensors category, this model belongs to the Autonics PR Series.
| Brand | Autonics |
| Product Type | Proximity Sensor |
| Model Number | PRCML18-5AC |
Autonics PRCML18-5AC Proximity Sensor β Technical Specifications
| Specification | Value |
|---|---|
| Sensing side diameter | M18 |
| Sensing distance | 5mm |
| Hysteresis(distance) | Max. 10% of sensing distance |
| Standard sensing target | 18Γ18Γ1mm(iron) |
| Current specification | Leakage current: Max. 2.5mA |
| Control output | Normally Closed |
| Wire type and power | AC 2-wire type 100-240VAC~ |
| Installation | Flush |
| Cable Standard/material | Standard connector |
| Body length | Long body |
| Insulation type | Double insulation or reinforced insulation(mark: @(INS), dielectric strength between the measuring input part and the power part: 1kV) |
| Residual voltage | Max. 10V |
| Environment_Ambient temperature | -25 to 70β, storage: -30 to 80β |
| Environment_Ambient humidity | 35 to 95% RH, storage: 35 to 95% RH |
| Protection structure | IP67(IEC standard) |
| Material | Brass(nickel plated) |
| Response frequency | 20Hz |
| Weight | Approx. 78g(approx. 66g) |
Send Your Inquiry for Cylindrical Inductive Proximity Sensors PRCML18-5AC with cost-effective solutions. Essential Technical Specs of PRCML18-5AC are the key specifications include a sensing distance of 5mm designed for a standard target of 18Γ18Γ1mm(iron). This sensor features a Current specification of Leakage current: Max. 2.5mA and a control output with Normally Closed configurations. It operates on a Wire type and power AC 2-wire type 100-240VAC~. Its sensing side size guarantees precise detection, even in challenging environments. The sensor operates efficiently within ambient temperatures of -25 to 70β, storage: -30 to 80β and can be stored at temperatures ranging. A response frequency of 20Hz ensures quick and accurate performance. Capture the Best Deal with a Quote for your requirement of Cylindrical Inductive Proximity Sensors. Our pricing and support are designed to exceed the standards of other Traders & Suppliers.
