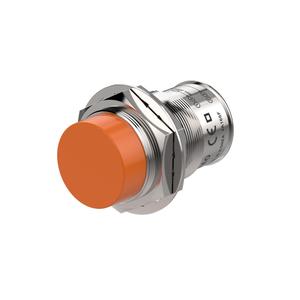

Autonics PRCM30-15DP Proximity Sensor
The Autonics PRCM30-15DP Proximity Sensor provides a 15mm sensing distance with PNP Normally Open output and a durable M30 sensing side diameter for precise object detection. Designed by Autonics, this proximity sensor from the PR Series ensures reliable operation with hysteresis max. 10 of sensing distance and a standard sensing target 45Γ45Γ1mm (iron). It runs on a DC 3-wire type 12β24VDC power supply, delivers a 200Hz response frequency, and includes IP67 protection for tough industrial environments.
| Brand | Autonics |
| Product Type | Proximity Sensor |
| Model Number | PRCM30-15DP |
Autonics PRCM30-15DP Proximity Sensor β Technical Specifications
| Specification | Value |
|---|---|
| Sensing side diameter | M30 |
| Sensing distance | 15mm |
| Hysteresis(distance) | Max. 10% of sensing distance |
| Standard sensing target | 45Γ45Γ1mm(iron) |
| Current specification | Current consumption: Max. 10mA |
| Control output | PNP Normally Open |
| Wire type and power | DC 3-wire type 12-24VDC @(=) |
| Installation | Non-flush |
| Cable Standard/material | Standard connector |
| Body length | Standard type |
| Residual voltage | Max. 1.5V |
| Environment_Ambient temperature | -25 to 70β, storage: -30 to 80β |
| Environment_Ambient humidity | 35 to 95% RH, storage: 35 to 95% RH |
| Protection structure | IP67(IEC standard) |
| Material | Case/Nut: Nikel plated Brass, (connector case of DIA. of sensing side Γ 8 mm: SUS303),washer: Nikel plated Iron, sensing side: polybutylene terephthalate,standard cable (black): polyvinyl chloride (PVC),oil resistant cable (gray): oil resistant polyvinyl chloride (PVC) |
| Response frequency | 200Hz |
| Weight | Approx. 146g(approx. 134g) |
Autonics PRCM30-15DP Cylindrical Inductive Proximity Sensor features a robust M30 non-flush housing and delivers an extended 15mm sensing distance for detecting 45Γ45Γ1mm iron targets with precision. It operates on a DC 3-wire 12β24V supply and offers a PNP Normally Open output with a maximum current consumption of 10mA. This model ensures stable performance with residual voltage below 1.5V and a response frequency of 200Hz, making it well-suited for moderate-speed automation tasks. The sensor is built with a nickel-plated brass body and a polybutylene terephthalate sensing face, providing strong resistance to shock, vibration, and contaminants. With its IP67 protection rating, it is dust-tight and protected against water immersion, making it reliable for harsh industrial settings. It operates efficiently in ambient temperatures from -25Β°C to 70Β°C and can tolerate humidity levels up to 95% RH. The unit weighs approximately 146g and is equipped with a standard connector featuring oil-resistant PVC insulation, allowing for secure wiring during installation and service.
The PRCM30-15DP is commonly used in large object detection, automated storage systems, metal fabrication lines, and bulk material handling. Its long sensing range and stable output help eliminate false triggers in dusty or vibrating environments. Maintenance engineers prefer the easy-to-replace connector-type setup, while panel designers appreciate its size, reliability, and compatibility with standard PLC inputs. Whether itβs a new industrial machine build or a control system retrofit, this sensor supports long-term operational stability and accurate object sensing across critical zones.
