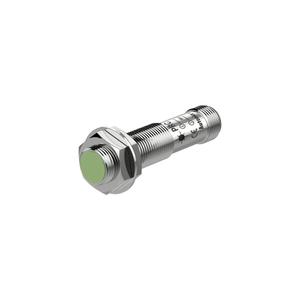

Autonics PRCM12-2AO Proximity Sensor
The Autonics PRCM12-2AO Proximity Sensor offers 2mm sensing distance, Normally Open output, Flush, M12, Standard type, 20Hz Response frequency. Manufactured by Autonics under the Autonics Proximity Sensors category, this model belongs to the Autonics PR Series.
| Brand | Autonics |
| Product Type | Proximity Sensor |
| Model Number | PRCM12-2AO |
Autonics PRCM12-2AO Proximity Sensor β Technical Specifications
| Specification | Value |
|---|---|
| Sensing side diameter | M12 |
| Sensing distance | 2mm |
| Hysteresis(distance) | Max. 10% of sensing distance |
| Standard sensing target | 12Γ12Γ1mm(iron) |
| Current specification | Leakage current: Max. 2.5mA |
| Control output | Normally Open |
| Wire type and power | AC 2-wire type 100-240VAC~ |
| Installation | Flush |
| Cable Standard/material | Standard connector |
| Body length | Standard type |
| Insulation type | Double insulation or reinforced insulation(mark: @(INS), dielectric strength between the measuring input part and the power part: 1kV) |
| Residual voltage | Max. 10V |
| Environment_Ambient temperature | -25 to 70β, storage: -30 to 80β |
| Environment_Ambient humidity | 35 to 95% RH, storage: 35 to 95% RH |
| Protection structure | IP67(IEC standard) |
| Material | Brass(nickel plated) |
| Response frequency | 20Hz |
| Weight | Approx. 42g(approx. 30g) |
Mail Us for your needs in Cylindrical Inductive Proximity Sensors PRCM12-2AO with budget-friendly prices. The Main Technical Parameters of PRCM12-2AO include the key specifications include a sensing distance of 2mm designed for a standard target of 12Γ12Γ1mm(iron). This sensor features a Current specification of Leakage current: Max. 2.5mA and a control output with Normally Open configurations. It operates on a Wire type and power AC 2-wire type 100-240VAC~. Its sensing side size guarantees precise detection, even in challenging environments. The sensor operates efficiently within ambient temperatures of -25 to 70β, storage: -30 to 80β and can be stored at temperatures ranging. A response frequency of 20Hz ensures quick and accurate performance. Customize Your Experience with a Quote for your requirement of Cylindrical Inductive Proximity Sensors. Experience the difference with our competitive pricing and superior support over other Suppliers.
