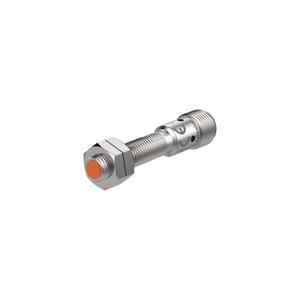

Autonics PRCM08-1.5DP2 Proximity Sensor
The Autonics PRCM08-1.5DP2 Proximity Sensor offers 1.5mm sensing distance, PNP Normally Closed output, Flush, M08, Standard type, 1.5kHz Response frequency. Manufactured by Autonics under the Autonics Proximity Sensors category, this model belongs to the Autonics PR Series.
| Brand | Autonics |
| Product Type | Proximity Sensor |
| Model Number | PRCM08-1.5DP2 |
Autonics PRCM08-1.5DP2 Proximity Sensor β Technical Specifications
| Specification | Value |
|---|---|
| Sensing side diameter | M08 |
| Sensing distance | 1.5mm |
| Hysteresis(distance) | Max. 15% of sensing distance |
| Standard sensing target | 8Γ8Γ1mm(iron) |
| Current specification | Current consumption: Max. 10mA |
| Control output | PNP Normally Closed |
| Wire type and power | DC 3-wire type 12-24VDC @(=) |
| Installation | Flush |
| Cable Standard/material | Standard connector |
| Body length | Standard type |
| Residual voltage | Max. 2V |
| Environment_Ambient temperature | -25 to 70β, storage: -30 to 80β |
| Environment_Ambient humidity | 35 to 95% RH, storage: 35 to 95% RH |
| Protection structure | IP67(IEC standard) |
| Material | Case/Nut: Nikel plated Brass, (connector case of DIA. of sensing side Γ 8 mm: SUS303),washer: Nikel plated Iron, sensing side: polybutylene terephthalate,standard cable (black): polyvinyl chloride (PVC),oil resistant cable (gray): oil resistant polyvinyl chloride (PVC) |
| Response frequency | 1.5kHz |
| Weight | Approx. 10g(approx. 32g) |
Please speak to our Technical Engineer for Cylindrical Inductive Sensors PRCM08-1.5DP2 at attractive prices. Technical Specs Summary of PRCM08-1.5DP2 includes the key specifications include a sensing distance of 1.5mm designed for a standard target of 8Γ8Γ1mm(iron). This sensor features a Current specification of Current consumption: Max. 10mA and a control output with PNP Normally Closed configurations. It operates on a Wire type and power DC 3-wire type 12-24VDC @(=). Its sensing side size guarantees precise detection, even in challenging environments. The sensor operates efficiently within ambient temperatures of -25 to 70β, storage: -30 to 80β and can be stored at temperatures ranging. A response frequency of 1.5kHz ensures quick and accurate performance. Match Your Needs with a Quote for your requirement of Cylindrical Inductive Sensors. We lead with pricing that's more favorable and support that's more attentive than other Suppliers & Traders.
