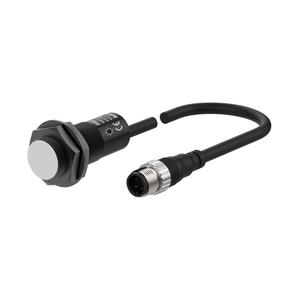

Autonics PRAWT18-5DC Proximity Sensor
The Autonics PRAWT18-5DC Proximity Sensor offers 5mm sensing distance, Normally Closed output, Flush, M18, Standard type, 500Hz Response frequency. Manufactured by Autonics under the Autonics Proximity Sensors category, this model belongs to the Autonics PR Series.
| Brand | Autonics |
| Product Type | Proximity Sensor |
| Model Number | PRAWT18-5DC |
Autonics PRAWT18-5DC Proximity Sensor β Technical Specifications
| Specification | Value |
|---|---|
| Sensing side diameter | M18 |
| Sensing distance | 5mm |
| Hysteresis(distance) | Max. 10% of sensing distance |
| Standard sensing target | 18Γ18Γ1mm(iron) |
| Current specification | Leakage current: Max. 0.6mA |
| Control output | Normally Closed |
| Wire type and power | DC 2-wire type 12-24VDC @(=) |
| Installation | Flush |
| Cable Standard/material | Standard connector |
| Body length | Standard type |
| Residual voltage | Max. 3.5V |
| Environment_Ambient temperature | -25 to 70β, storage: -30 to 80β |
| Environment_Ambient humidity | 35 to 95% RH, storage: 35 to 95% RH |
| Protection structure | IP67(IEC standard) |
| Material | Brass(teflon coated) |
| Response frequency | 500Hz |
| Weight | Approx. 70g(approx. 58g) |
Send Your Inquiry for Cylindrical Inductive Proximity Sensors PRAWT18-5DC with cost-effective solutions. Essential Technical Specs of PRAWT18-5DC are the key specifications include a sensing distance of 5mm designed for a standard target of 18Γ18Γ1mm(iron). This sensor features a Current specification of Leakage current: Max. 0.6mA and a control output with Normally Closed configurations. It operates on a Wire type and power DC 2-wire type 12-24VDC @(=). Its sensing side size guarantees precise detection, even in challenging environments. The sensor operates efficiently within ambient temperatures of -25 to 70β, storage: -30 to 80β and can be stored at temperatures ranging. A response frequency of 500Hz ensures quick and accurate performance. Capture the Best Deal with a Quote for your requirement of Cylindrical Inductive Proximity Sensors. Our pricing and support are designed to exceed the standards of other Traders & Suppliers.
