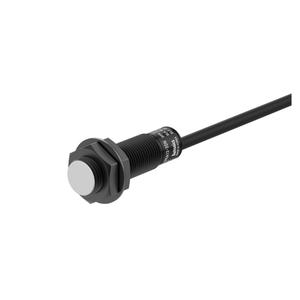

Autonics PRAT12-2XC Proximity Sensor
The Autonics PRAT12-2XC Proximity Sensor offers 2mm sensing distance, Normally Closed output, Flush, M12, Standard type, 1.5kHz Response frequency. Manufactured by Autonics under the Autonics Proximity Sensors category, this model belongs to the Autonics PR Series.
| Brand | Autonics |
| Product Type | Proximity Sensor |
| Model Number | PRAT12-2XC |
Autonics PRAT12-2XC Proximity Sensor β Technical Specifications
| Specification | Value |
|---|---|
| Sensing side diameter | M12 |
| Sensing distance | 2mm |
| Hysteresis(distance) | Max. 10% of sensing distance |
| Standard sensing target | 12Γ12Γ1mm(iron) |
| Current specification | Leakage current: Max. 0.6mA |
| Control output | Normally Closed |
| Wire type and power | DC 2-wire type 12-24VDC @(=) |
| Installation | Flush |
| Cable Standard/material | Standard cable |
| Body length | Standard type |
| Non-polarity | Non-polarity |
| Residual voltage | Max. 5V |
| Environment_Ambient temperature | -25 to 70β, storage: -30 to 80β |
| Environment_Ambient humidity | 35 to 95% RH, storage: 35 to 95% RH |
| Protection structure | IP67(IEC standard) |
| Material | Brass(teflon coated) |
| Response frequency | 1.5kHz |
| Weight | Approx. 84g(approx. 72g) |
Give Us a Call for Cylindrical Inductive Proximity Sensors PRAT12-2XC at the lowest pricing. In-depth Technical Analysis of PRAT12-2XC feature the key specifications include a sensing distance of 2mm designed for a standard target of 12Γ12Γ1mm(iron). This sensor features a Current specification of Leakage current: Max. 0.6mA and a control output with Normally Closed configurations. It operates on a Wire type and power DC 2-wire type 12-24VDC @(=). Its sensing side size guarantees precise detection, even in challenging environments. The sensor operates efficiently within ambient temperatures of -25 to 70β, storage: -30 to 80β and can be stored at temperatures ranging. A response frequency of 1.5kHz ensures quick and accurate performance. Elevate Your Project with a Quote for your requirement of Cylindrical Inductive Proximity Sensors. Our promise: More affordable pricing and more personalized support than other Distributors & Dealers.
