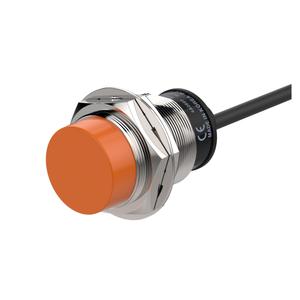

Autonics PR30-15DP Proximity Sensor
The Autonics PR30-15DP Proximity Sensor provides a 15mm sensing distance with PNP Normally Open output and a durable M30 sensing side diameter ideal for metal detection applications. Manufactured by Autonics, this proximity sensor from the PR Series ensures dependable performance with hysteresis max. 10 of sensing distance and a standard sensing target 45Γ45Γ1mm (iron). It operates on a DC 3-wire type 12β24VDC power supply, supports a 200Hz response frequency, and includes strong IP67 protection for industrial environments.
| Brand | Autonics |
| Product Type | Proximity Sensor |
| Model Number | PR30-15DP |
Autonics PR30-15DP Proximity Sensor β Technical Specifications
| Specification | Value |
|---|---|
| Sensing side diameter | M30 |
| Sensing distance | 15mm |
| Hysteresis(distance) | Max. 10% of sensing distance |
| Standard sensing target | 45Γ45Γ1mm(iron) |
| Current specification | Current consumption: Max. 10mA |
| Control output | PNP Normally Open |
| Wire type and power | DC 3-wire type 12-24VDC @(=) |
| Installation | Non-flush |
| Cable Standard/material | Standard cable |
| Body length | Standard type |
| Residual voltage | Max. 1.5V |
| Environment_Ambient temperature | -25 to 70β, storage: -30 to 80β |
| Environment_Ambient humidity | 35 to 95% RH, storage: 35 to 95% RH |
| Protection structure | IP67(IEC standard) |
| Material | Case/Nut: Nikel plated Brass, (connector case of DIA. of sensing side Γ 8 mm: SUS303),washer: Nikel plated Iron, sensing side: polybutylene terephthalate,standard cable (black): polyvinyl chloride (PVC),oil resistant cable (gray): oil resistant polyvinyl chloride (PVC) |
| Response frequency | 200Hz |
| Weight | Approx. 207g(approx. 170g) |
Built with a robust M30 cylindrical body, the Autonics PR30-15DP provides a 15mm sensing distance for iron targets measuring 45Γ45Γ1mm. Operating on a DC 3-wire system with 12β24VDC input, it features a PNP Normally Open output and consumes a maximum current of just 10mA. This sensor ensures fast and reliable detection with a 200Hz response frequency and maintains a low residual voltage of 1.5V. The durable housingβcrafted from nickel-plated brass with oil-resistant PVC cablesβmeets IP67 standards for water and dust protection. It operates efficiently in temperatures ranging from β25Β°C to 70Β°C and humidity levels up to 95%, making it highly reliable in demanding factory conditions.
The PR30-15DP is widely used for object presence detection on automated conveyor systems, machinery tooling setups, and robotic assemblies. Its ability to provide precise, non-contact detection enhances safety and productivity across diverse industrial segments. Maintenance engineers rely on this model for monitoring part positioning in metalworking, packaging, and automotive processes. Its quick response time and stable output performance reduce cycle delays and signal noiseβensuring smooth integration with PLCs and controllers. Whether used for end-stop sensing or object verification, this sensor delivers consistent performance even in oil-exposed or high-humidity workspaces.
For more product options, visit the full Autonics Proximity Sensor Series. To browse the complete industrial automation range, check our Autonics Brand Page. Our team is available to support your selection with pricing and integration advice tailored to your application.
