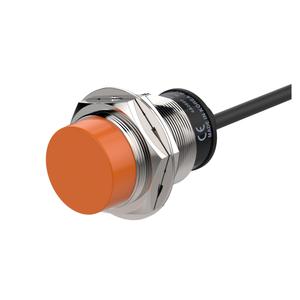

Autonics PR30-15DN-V Proximity Sensor
The Autonics PR30-15DN-V Proximity Sensor offers 15mm sensing distance, NPN Normally Open output, Non-flush, M30, Standard type, 200Hz Response frequency. Manufactured by Autonics under the Autonics Proximity Sensors category, this model belongs to the Autonics PR Series.
| Brand | Autonics |
| Product Type | Proximity Sensor |
| Model Number | PR30-15DN-V |
Autonics PR30-15DN-V Proximity Sensor – Technical Specifications
| Specification | Value |
|---|---|
| Sensing side diameter | M30 |
| Sensing distance | 15mm |
| Hysteresis(distance) | Max. 10% of sensing distance |
| Standard sensing target | 45×45×1mm(iron) |
| Current specification | Current consumption: Max. 10mA |
| Control output | NPN Normally Open |
| Wire type and power | DC 3-wire type 12-24VDC @(=) |
| Installation | Non-flush |
| Cable Standard/material | Oil resistant cable |
| Body length | Standard type |
| Residual voltage | Max. 1.5V |
| Environment_Ambient temperature | -25 to 70℃, storage: -30 to 80℃ |
| Environment_Ambient humidity | 35 to 95% RH, storage: 35 to 95% RH |
| Protection structure | IP67(IEC standard) |
| Material | Case/Nut: Nikel plated Brass, (connector case of DIA. of sensing side Ø 8 mm: SUS303),washer: Nikel plated Iron, sensing side: polybutylene terephthalate,standard cable (black): polyvinyl chloride (PVC),oil resistant cable (gray): oil resistant polyvinyl chloride (PVC) |
| Response frequency | 200Hz |
| Weight | Approx. 207g(approx. 170g) |
Give Us a Call for Cylindrical Inductive Proximity Sensors PR30-15DN-V at the lowest pricing. In-depth Technical Analysis of PR30-15DN-V feature the key specifications include a sensing distance of 15mm designed for a standard target of 45×45×1mm(iron). This sensor features a Current specification of Current consumption: Max. 10mA and a control output with NPN Normally Open configurations. It operates on a Wire type and power DC 3-wire type 12-24VDC @(=). Its sensing side size guarantees precise detection, even in challenging environments. The sensor operates efficiently within ambient temperatures of -25 to 70℃, storage: -30 to 80℃ and can be stored at temperatures ranging. A response frequency of 200Hz ensures quick and accurate performance. Elevate Your Project with a Quote for your requirement of Cylindrical Inductive Proximity Sensors. Our promise: More affordable pricing and more personalized support than other Distributors & Dealers.
