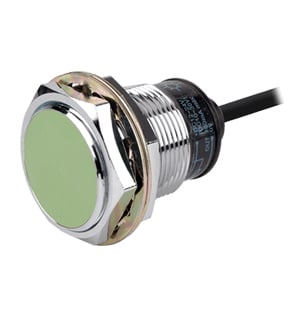

Autonics PR30-10AO Cylindrical Inductive Proximity Sensor
Autonics PR30-10AO is a cylindrical inductive proximity sensor with 10mm sensing distance, M30 diameter, and AC operation. Manufactured by Autonics, this Autonics Cylindrical Inductive Proximity Sensors model belongs to the PR Series and features AC 2-wire 100–240VAC supply, PNP normally closed output, max 2.5mA leakage current, 20Hz response frequency, flush installation, IP67 protection structure, standard cable type, and approx. 207g weight for industrial automation applications.
| Brand | Autonics |
| Product Type | Proximity Sensor |
| Model Number | PR30-10AO |
Autonics PR30-10AO Cylindrical Inductive Proximity Sensor - Technical Specifications
| Specification | Value |
|---|---|
| Sensing side diameter | M30 |
| Sensing distance | 10mm |
| Hysteresis(distance) | Max. 10% of sensing distance |
| Standard sensing target | 30×30×1mm(iron) |
| Current specification | Leakage current: Max. 2.5mA |
| Control output | Normally Open |
| Wire type and power | AC 2-wire type100-240VAC~ |
| Installation | Flush |
| Cable Standard/material | Standard cable |
| Body length | Standard type |
| Insulation type | Double insulation or reinforced insulation(mark: @(INS), dielectric strength between the measuring input part and the power part: 1kV) |
| Residual voltage | Max. 10V |
| Environment_Ambient temperature | -25 to 70℃, storage: -30 to 80℃ |
| Environment_Ambient humidity | 35 to 95% RH, storage: 35 to 95% RH |
| Protection structure | IP67(IEC standard) |
| Material | Brass(nickel plated) |
| Response frequency | 20Hz |
| Weight | Approx. 207g(approx. 170g) |
ThePR30-10AO is positioned within Autonics Cylindrical Inductive Proximity Sensors for industrial automation metal detection. The Autonics PR30-10AO provides a 10mm sensing distance in a large M30 diameter cylindrical housing and operates on AC 100–240VAC supply with IP67 protection. This PR30-10AO model belongs to the PR Series and features normally closed control output with maximum 2.5mA leakage current and 20Hz response frequency. It ensures stable switching with hysteresis within 10% of sensing distance.
In manufacturing plants across India, PR30-10AO is installed on conveyors, heavy-duty material handling systems, and assembly lines requiring flush mounting. Autonics PR30-10AO detects standard 30×30×1mm iron targets and delivers reliable switching signals to control circuits. The AC 2-wire configuration simplifies wiring in 100–240VAC industrial panels and supports consistent automation sequencing.
PR30-10AO from Autonics PR Series supports cylindrical sensing requirements in AC-powered industrial systems. As part of Autonics Cylindrical Inductive Proximity Sensors portfolio, Autonics PR30-10AO integrates into automation environments requiring durable M30 sensing devices. With defined electrical characteristics and IP67 enclosure rating, PR30-10AO provides dependable metal detection performance for industrial automation applications.
