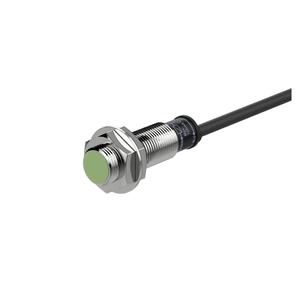

Autonics PR12-2DN2 Cylindrical Inductive Proximity Sensor
The PR12-2DN2 Autonics Cylindrical Inductive Proximity Sensors provide 2mm sensing distance with NPN Normally Closed output reliably. PR12-2DN2 belongs to the Autonics sensing range and the Autonics Proximity Sensors category for industrial automation systems. This model is part of the PR Series featuring M12 cylindrical size, DC 3-wire 12-24VDC operation, IP67 protection, and 1.5kHz response frequency.
| Brand | Autonics |
| Product Type | Proximity Sensor |
| Model Number | PR12-2DN2 |
Autonics PR12-2DN2 Cylindrical Inductive Proximity Sensor – Technical Specifications
| Specification | Value |
|---|---|
| Sensing side diameter | M12 |
| Sensing distance | 2mm |
| Hysteresis(distance) | Max. 10% of sensing distance |
| Standard sensing target | 12×12×1mm(iron) |
| Current specification | Current consumption: Max. 10mA |
| Control output | NPN Normally Closed |
| Wire type and power | DC 3-wire type 12-24VDC @(=) |
| Installation | Flush |
| Cable Standard/material | Standard cable |
| Body length | Standard type |
| Residual voltage | Max. 1.5V |
| Environment_Ambient temperature | -25 to 70℃, storage: -30 to 80℃ |
| Environment_Ambient humidity | 35 to 95% RH, storage: 35 to 95% RH |
| Protection structure | IP67(IEC standard) |
| Material | Case/Nut: Nikel plated Brass, (connector case of DIA. of sensing side Ø 8 mm: SUS303),washer: Nikel plated Iron, sensing side: polybutylene terephthalate,standard cable (black): polyvinyl chloride (PVC),oil resistant cable (gray): oil resistant polyvinyl chloride (PVC) |
| Response frequency | 1.5kHz |
| Weight | Approx. 84g(approx. 72g) |
The PR12-2DN2 Autonics Cylindrical Inductive Proximity Sensors are designed for industrial automation systems requiring stable metal object detection. The PR12-2DN2 sensor supports 2mm sensing distance, NPN Normally Closed output, DC 3-wire 12-24VDC operation, and IP67 protection structure. This PR12-2DN2 model belongs to the PR Series from Autonics and is used in industrial automation equipment requiring dependable inductive sensing performance. The flush installation structure and M12 cylindrical housing support compact machine integration.
The PR12-2DN2 proximity sensor is used in conveyors, packaging systems, assembly equipment, and automated production lines. It helps maintain reliable metal object detection and stable switching operation during continuous industrial processes. The sensor supports dependable sensing performance in industrial environments exposed to dust and moisture. Its IP67 protection structure improves suitability for factory automation systems requiring durable non-contact sensing operation. PR Series inductive proximity sensors are commonly integrated into machine automation and material handling applications requiring stable monitoring performance.
Autonics PR12-2DN2 Cylindrical Inductive Proximity Sensors combine 2mm sensing capability, 1.5kHz response frequency, and 12-24VDC operation for industrial automation requirements. The PR12-2DN2 sensor provides stable NPN Normally Closed output performance with reliable sensing operation and low current consumption characteristics. Autonics proximity sensors are widely used in industrial control systems for packaging equipment, assembly machines, and conveyor automation applications. This PR Series sensor is suitable for engineers and industrial buyers requiring dependable inductive sensing solutions for long-term industrial operation.
