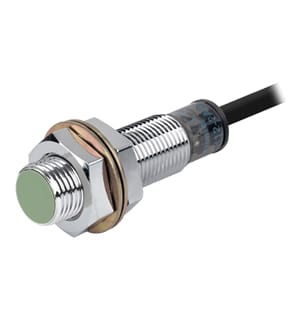

Autonics PR12-2AO: Inductive Type Proximity Sensor
The technical specifications for the Autonics PR12-2AO Inductive Type Proximity Sensor:
- Sensing Distance:Β 2mm
- Sensing Side Diameter: M12
- Wire Type and Power: AC 2-wire type 100-240VAC
- Installation: Flush
- Response Frequency: 20 Hz
- Control Output: Normally Open
- Material: Brass(nickel plated)
- Body Length:Β Standard Type
Autonics PR12-2AO Inductive Type Proximity Sensor Technical Specification:
| Sensing Distance | 2 mm |
| Sensing side diameter | M12 |
| Wire type and power | AC 2-wire type 100-240VAC |
| Installation | Flush |
| Standard sensing target | 12Γ12Γ1mm(iron) |
| Response frequency | 20 Hz |
| Current specification | Leakage current: Max. 2.5mA |
| Control output | Normally Open |
| Material | Brass(nickel plated) |
| Cable Standard/material | Standard cable |
| Protection structure | IP67(IEC standard) |
| Body length | Standard type |
| Environment_Ambient temperature | -25 to 70β, storage: -30 to 80β |
| Environment_Ambient humidity | 35 to 95% RH, storage: 35 to 95% RH |
| Hysteresis(distance) | Max. 10% of sensing distance |
| Residual voltage | Max. 10V |
| Insulation type | Double insulation or reinforced insulation , (dielectric strength between the measuring input part and the power part: 1kV) |
| Weight | Approx. 84g(approx. 66g) |
Looking for the Autonics PR12-2AO Inductive Type Proximity Sensor. It has a sensing distance of 2 mm, a Sensing side diameter of M12, an AC 2-wire system, that works with 100-240VAC power, for flush installation, and is ideal for sensing iron targets that are 12x12x1 mm in size. The sensor responds at a frequency of 20 Hz and has a maximum leakage current of 2.5mA. It’s a normally open-type sensor, made from durable, nickel-plated brass. It comes with a standard cable and is built to last, with an IP67 waterproof rating. If you’re looking for a good deal on this sensor, IndMALL Automation offers the original and high-quality Inductive Sensors at competitive prices, ensuring you get the best value for your purchase.
