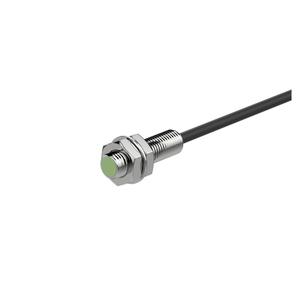

Autonics PR08-1.5DN2 Cylindrical Inductive Proximity Sensor
PR08-1.5DN2 is an Autonics cylindrical inductive proximity sensor with M08 size, 1.5mm sensing distance, flush mounting, and NPN output. Manufactured by Autonics, this Autonics Cylindrical Inductive Proximity Sensors model belongs to the Autonics Proximity Sensors category and the PR Series, supporting DC 3-wire 12–24V operation, IP67 protection, 1.5kHz response frequency, and flush installation.
| Brand | Autonics |
| Product Type | Proximity Sensor |
| Model Number | PR08-1.5DN2 |
Autonics PR08-1.5DN2 Cylindrical Inductive Proximity Sensor – Technical Specifications
| Specification | Value |
|---|---|
| Sensing side diameter | M08 |
| Sensing distance | 1.5mm |
| Hysteresis(distance) | Max. 10% of sensing distance |
| Standard sensing target | 8×8×1mm(iron) |
| Current specification | Current consumption: Max. 10mA |
| Control output | NPN Normally Closed |
| Wire type and power | DC 3-wire type 12-24VDC @(=) |
| Installation | Flush |
| Cable Standard/material | Standard cable |
| Body length | Standard type |
| Residual voltage | Max. 2V |
| Environment_Ambient temperature | -25 to 70℃, storage: -30 to 80℃ |
| Environment_Ambient humidity | 35 to 95% RH, storage: 35 to 95% RH |
| Protection structure | IP67(IEC standard) |
| Material | Case/Nut: Nikel plated Brass, (connector case of DIA. of sensing side Ø 8 mm: SUS303),washer: Nikel plated Iron, sensing side: polybutylene terephthalate,standard cable (black): polyvinyl chloride (PVC),oil resistant cable (gray): oil resistant polyvinyl chloride (PVC) |
| Response frequency | 1.5kHz |
| Weight | Approx. 64g(approx. 52g) |
The Autonics PR08-1.5DN2 Cylindrical Inductive Proximity Sensors is a compact sensing device designed for industrial automation applications in India. This proximity sensor offers a M08 cylindrical form factor with a 1.5mm sensing distance and a NPN normally closed output. It operates on a DC 3-wire 12–24V supply and is part of the PR Series from Autonics, ensuring consistent detection performance in controlled automation environments.
In industrial automation systems, the PR08-1.5DN2 is commonly applied in conveyors, packaging machinery, assembly lines, and automated handling equipment. Its flush mounting design allows easy integration into compact machine structures, while stable sensing supports accurate object detection. The proximity sensor helps maintain reliable switching performance, contributing to smooth operation in repetitive industrial processes requiring precise position sensing.
The PR08-1.5DN2 proximity sensor from Autonics combines defined sensing characteristics with durable construction suitable for factory environments. With IP67 protection, controlled current consumption, and standardized sensing targets, it aligns with industrial automation requirements. As part of the Autonics PR Series, this model supports consistent performance expectations, making it a dependable choice for engineers specifying inductive proximity sensors in automation systems.
