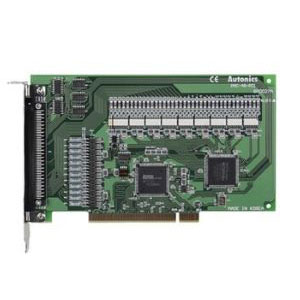

Maintenance teams planning replacements for PMC-1HS-232 frequently review Autonics Proximity Sensor, Autonics Digital Counter and Autonics Pmc 4B Pci to prevent downtime, checking availability and compatibility with existing systems.
Autonics PMC-1HS-232 Motion Controller
The Autonics PMC-1HS-232 Motion Controller offers Parallel I/F: Input 13, Output 4X-axis: Input 8, Output 5 (general output 1), INDEX, PROGRAM(64-step), JOG, CONTINUOUS Autonics protocol, 24VDC power supply. Manufactured by Autonics under the Autonics Motion Controllers category, this model belongs to the Autonics PMC-1HS Series.
| Brand | Autonics |
| Product Type | Motion Controllers |
| Model Number | PMC-1HS-232 |
Autonics PMC-1HS-232 Motion Controller – Technical Specifications
| Specification | Value |
|---|---|
| Number Of Axes | 1-axis |
| Type | Independent type |
| Input/Output Contact | Parallel I/F: Input 13, Output 4X-axis: Input 8, Output 5 (general output 1) |
| Operation mode | INDEX, PROGRAM(64-step), JOG, CONTINUOUS |
| In-Position Setting | ABSOLUTE, INCREMENTAL |
| Drive Speed | 1 pps to 4 Mpps |
| Connection method | RS232C |
| Communication Protocol | Autonics protocol |
| Power supply | 24VDC |
| Index step numbers | 64 indexes per axis |
| Inposition range | -8,388,608 to 8,388,607 (supports pulse scaling function) |
| Drive speed numbers | 1 pps to 4 Mpps (1 to 8,000 × magnification 1 to 500) |
| Accessories_Common | User manual, CD |
| Accessories_Power connector | [CN1] MC1, 5/2-ST-3.5(PHOENIX): 1 |
| Accessories_RS232C connector | [CN2] RS-232C communication cable (1.5m): 1 |
| Accessories_P I/F connector | [CN3] 20P MIL standard, 2.54mm connector: 1 |
| Accessories_X axis input/output connector | [CN4] 16P MIL standard, 2.54mm connector: 1 (In case of 2HS, using 2) |
| Environment_Ambient temperature | 0 to 45℃ |
| Environment_Ambient humidity | 35 to 85%RH |
| Weight | Approx. 386g(approx. 96.8g) |
IndMALL Automation Dealing offers Autonics High-Speed 1/2-Axis Motion Controllers PMC-1HS-232 at unbeatable prices. The Main Technical Parameters of PMC-1HS-232 are Independent type controller features Parallel I/F: Input 13, Output 4X-axis: Input 8, Output 5 (general output 1). Supporting multiple operation modes such as INDEX, PROGRAM(64-step), JOG, CONTINUOUS, it ensures flexible motion control. The in-position setting allows both ABSOLUTE, INCREMENTAL positioning, providing high accuracy. With a drive speed range of 1 pps to 4 Mpps, it offers smooth and dynamic movement. The controller utilizes RS232C communication and operates on the Autonics protocol for seamless integration. Powered by 24VDC it is built for reliable operation in demanding environments. Operating temperature ranges from 0 to 45℃, with humidity tolerance of 35 to 85%RH. Take the First Step with a Quote for your requirement of High-Speed 1/2-Axis Motion Controllers. Choose us for unparalleled pricing and support over other Dealers & Distributors.
