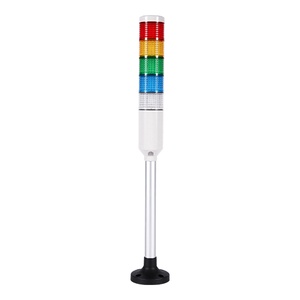

Autonics PL4PZ-5FF-RYGBC Tower Light
The Autonics PL4PZ-5FF-RYGBC Tower Light offers Steady, Flashing, Buzzerfunction, 110~220VAC power supply, Red, Yellow, Green, Blue, Clear lens color, Lead wire connection type. Manufactured by Autonics under the Autonics Tower Light category, this model belongs to the Autonics PL4 Series.
| Brand | Autonics |
| Product Type | Tower Lights |
| Model Number | PL4PZ-5FF-RYGBC |
Autonics PL4PZ-5FF-RYGBC Tower Light β Technical Specifications
| Specification | Value |
|---|---|
| Function | Steady, Flashing, Buzzer |
| Power supply | 110~220VAC |
| Current consumption | 0.11A |
| LED color | Red, Yellow, Green, Blue, White |
| Lens color | Red, Yellow, Green, Blue, Clear |
| Dimension | D45mm |
| Flashing rate | 80Β±5times/minute |
| Mounting direction | Upward only |
| Connection type | Lead wire connection |
| Cable specification | UL1007/22AWG |
| Ambient temperature | -20~40β |
| Storage ambient temperature | -20~70β |
| Ambient humidity | 45 to 85%RH |
| Insulation resistance | 100M⦠or more (500VDC megger basis) |
| Vibration | 0.75mm at 10~55Hz |
| Protection structure | IP52 |
| Buzzer volume | Intermittent sound: 75Β±5dB (at 1m) Continuous sound(option): 75Β±5dB (at 1m) |
