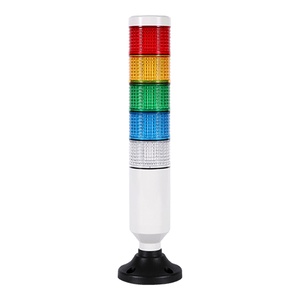

Autonics PL4GZ-502-RYGBC Tower Light
The Autonics PL4GZ-502-RYGBC Tower Light offers Steady, Flashing, Buzzerfunction, 24VAC/DC power supply, Red, Yellow, Green, Blue, Clear lens color, Lead wire connection type. Manufactured by Autonics under the Autonics Tower Light category, this model belongs to the Autonics PL4 Series.
| Brand | Autonics |
| Product Type | Tower Lights |
| Model Number | PL4GZ-502-RYGBC |
Autonics PL4GZ-502-RYGBC Tower Light β Technical Specifications
| Specification | Value |
|---|---|
| Function | Steady, Flashing, Buzzer |
| Power supply | 24VAC/DC |
| Current consumption | 0.20A |
| LED color | Red, Yellow, Green, Blue, White |
| Lens color | Red, Yellow, Green, Blue, Clear |
| Dimension | D45mm |
| Flashing rate | 80Β±5times/minute |
| Mounting direction | Upward only |
| Connection type | Lead wire connection |
| Cable specification | UL1007/22AWG |
| Ambient temperature | -20~40β |
| Storage ambient temperature | -20~70β |
| Ambient humidity | 45 to 85%RH |
| Insulation resistance | 100M⦠or more (500VDC megger basis) |
| Vibration | 0.75mm at 10~55Hz |
| Protection structure | IP52 |
| Buzzer volume | Intermittent sound: 75Β±5dB (at 1m) Continuous sound(option): 75Β±5dB (at 1m) |
