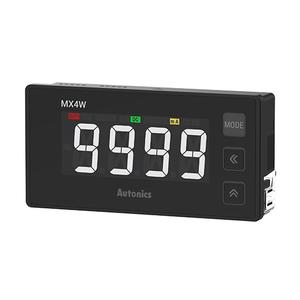

Autonics MX4W-V-F2 Digital Panel Meter
The Autonics MX4W-V-F2 Digital Panel Meter offers 12 segment (measurement value display part: white, character height: 19mm), other display parts(red, green, yellow, indicator model: white) LCD method display method, 19mm character height, -9999 to 9999(4digit) display range, DC voltageAC voltage, Frequency measurement. Manufactured by Autonics under the Autonics Digital Panel Meter category, this model belongs to the Autonics MX4W Series.
| Brand | Autonics |
| Product Type | Digital Panel Meter |
| Model Number | MX4W-V-F2 |
Autonics MX4W-V-F2 Digital Panel Meter β Technical Specifications
| Specification | Value |
|---|---|
| Display method | 12 segment (measurement value display part: white, character height: 19mm), other display parts(red, green, yellow, indicator model: white) LCD method |
| Character height | 19mm |
| Max. display Range | -9999 to 9999(4digit) |
| Measurement | DC voltageAC voltage, Frequency |
| Input specification | DC ΓΒ±500mV, ΓΒ±200mV, ΓΒ±50mV, ΓΒ±20V, ΓΒ±5V, 1-5V, ΓΒ±2V, ΓΒ±500V, ΓΒ±200V, ΓΒ±50V, AC 0-500mV, 0-200mV, 0-50mV, 0-20V, 0-5V, 0-2V, 0-500V, 0-200V, 0-110V, 0-50V |
| AC Measurement | Select RMS value /AVG value measurement methods |
| Power supply | 24-240VAC~ 50/60Hz, 24-240VDC @(=) |
| Output_Main Output(Comparative Value) | PNP open collector output |
| Display accuracy | 23ΓΒ±5Γ’βΖ - DC input: ΓΒ±0.1% F .S. ΓΒ±2digit, AC input: ΓΒ±0.3% F .S. ΓΒ±3digit Γ’β¬Β»The teminal for 5A of current input, ΓΒ±0.3% F .S. ΓΒ±3digit, 0~50Γ’βΖ - AC/DC input: ΓΒ±0.5% F .S. ΓΒ±3digit Γ’β¬Β»The teminal for 5A of current input, ΓΒ±1% F .S. ΓΒ±3digit |
| Power Factor Display | Power factor display are available when input type is DC. |
| Max. allowable input | Γ’β¬Β’ DC input: approx. -110 to 110% of each measurement input range(when not using minus input: -10 to 110%)Γ’β¬Β’ AC input: approx. 110% of each measurement input range |
| Display cycle | 0.2 to 5.0 sec (select per 0.1 sec) |
| Environment_Ambient temperature | -10 to 50Γ’βΖ, storage: -20 to 60Γ’βΖ |
| Environment_Ambient humidity | 35 to 85% RH, storage: 35 to 85% RH |
| Protection structure | IP54 (front part, IEC standard) |
| Weight | Approx. 100g(approx. 77g) |
Please speak to our Technical Engineer for Autonics LCD Display Multi Panel Meter MX4W-V-F2 at attractive prices. Technical Specs Summary of MX4W-V-F2 includes an 12 segment (measurement value display part: white, character height: 19mm), other display parts(red, green, yellow, indicator model: white) LCD method with 19mm character height, these displays support a maximum range of -9999 to 9999(4digit). Designed for DC voltageAC voltage, Frequency measurement, they handle DC ΓΒ±500mV, ΓΒ±200mV, ΓΒ±50mV, ΓΒ±20V, ΓΒ±5V, 1-5V, ΓΒ±2V, ΓΒ±500V, ΓΒ±200V, ΓΒ±50V, AC 0-500mV, 0-200mV, 0-50mV, 0-20V, 0-5V, 0-2V, 0-500V, 0-200V, 0-110V, 0-50V inputs. The system supports AVG and RMS measurement methods and operates on 24-240VAC~ 50/60Hz, 24-240VDC @(=) power. Outputs include PNP open collector output and . The display accuracy is 23ΓΒ±5Γ’βΖ - DC input: ΓΒ±0.1% F .S. ΓΒ±2digit, AC input: ΓΒ±0.3% F .S. ΓΒ±3digit Γ’β¬Β»The teminal for 5A of current input, ΓΒ±0.3% F .S. ΓΒ±3digit, 0~50Γ’βΖ - AC/DC input: ΓΒ±0.5% F .S. ΓΒ±3digit Γ’β¬Β»The teminal for 5A of current input, ΓΒ±1% F .S. ΓΒ±3digit. The ensures precise sampling. Equipped with a , it is ideal for industrial automation applications. Get a quote today for Autonics Display Units with superior accuracy and performance. Match Your Needs with a Quote for your requirement of LCD Display Multi Panel Meter. We lead with pricing that's more favorable and support that's more attentive than other Suppliers & Traders.
